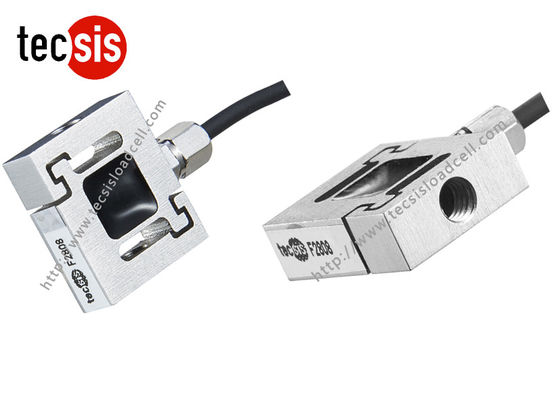

Industrial S - Type Load Cell Small Size Load Sensor Waterproof IP66

China Industrial S - Type Load Cell Small Size Load Sensor Waterproof IP66 supplier
Industrial S - Type Load Cell Small Size Load Sensor Waterproof IP66 supplier Industrial S - Type Load Cell Small Size Load Sensor Waterproof IP66 supplier

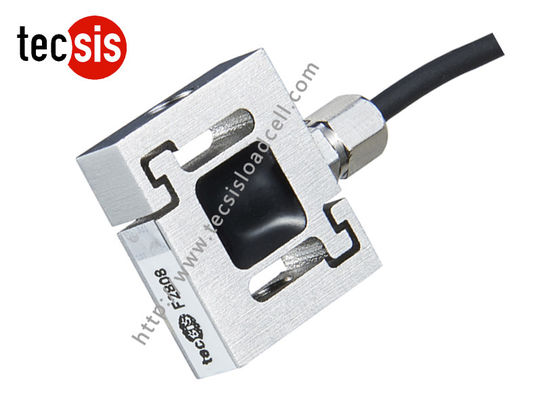

Large Image :  Industrial S - Type Load Cell Small Size Load Sensor Waterproof IP66

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F2808

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F2808 S-Type Load Cell Structure: Compact
Material: Stainless Steel Customized: Acceptable
Capacity: 5N~2000N OEM/ODM: Acceptable
Theory: Resistance Sensor
High Light:

s beam load cell

,

shear type load cell

Industrial S - Type Load Cell Small Size Load Sensor Waterproof IP66





Features :

  • Model:F2808
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Simple structure, easy to install
  • Small size, easy to use
  • Made of stainless steel
  • Capacity:5N~2000N



Description:



F2808 has good output symmetry, compact structure, simple to install, because of its internal and external features, it can support compression and tension, with the miniature size, it can be used in the limited space.



Due to the stainless steel and the small size, the safe overload is 150% and the ultimate overload can be 300%



The capacity is 5N to 2000N, it can measure the force of pull and push dynamometer, hopper scale and industrial measuring systems.





Applications:



Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.15% F.S.

Hysteresis

0.05% F.S.

Repeatability

0.05% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

350±30Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

5V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

300% F.S.

Cable size

Ø2×3000 mm

Protection class

IP66

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:



Industrial S - Type Load Cell Small Size Load Sensor Waterproof IP66



Load Direction:



Industrial S - Type Load Cell Small Size Load Sensor Waterproof IP66



Schematic Wiring Diagram :



Industrial S - Type Load Cell Small Size Load Sensor Waterproof IP66
