Product Name: | F2806 S-Type Load Cell | Structure: | Compact |
---|---|---|---|
Material: | Aluminum Alloy Or Alloy Steel | Customized: | Acceptable |
Capacity: | 1kg~200kg | OEM/ODM: | Acceptable |
Theory: | Resistance Sensor | ||
High Light: | s beam load cell,shear type load cell |
High Precision Impact S - Beam Crane Scale Load Cell Strain Gauge 100kg
Features :
Description:

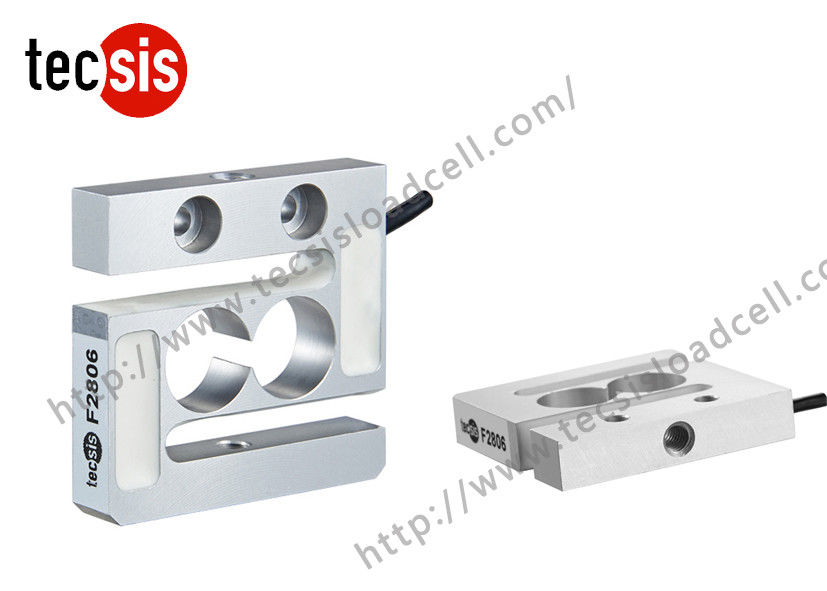

F2806 has good output symmetry, compact structure, simple to install, because of its internal and external features, it can support compression and tension, and be mainly used for the tensile testing, for example, the testing of force gauge, this is a best choice in tensile testing machine,
It has full range of capacities (the minimum capacity is 1kg, the maximum is 200kg), so it is available for small weighing device, for 1~30kg, it is made of the Aluminum material, for 50~200kg, it is made of alloy steel. It has many limiting conditions on environment, so it is applied for dry and no corrosion environment.
Applications:
S-type designing can be installed easily, which be available for crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.
Technical parameters:
Specifications |
Technique |
Rated output |
2.0±10%mV/V |
Zero balance |
±2% F.S. |
Non-linearity |
0.03% F.S. |
Hysteresis |
0.03% F.S. |
Repeatability |
0.02% F.S. |
Creep (30min) |
0.03% F.S. |
Temp. effect on output |
0.025% F.S. / 10ºC |
Temp. effect on zero |
0.025% F.S. / 10ºC |
Input impedance |
410±10Ω 385±10Ω (Alloy steel) |
Output impedance |
350±5Ω |
Insulation |
≥5000MΩ/ 100VDC |
Recommended excitation |
5V |
Maximum excitation |
15V |
Compensated temp. range |
- 10~60ºC |
Operation temp. range |
- 20~80ºC |
Safe overload |
150% F.S. |
Ultimate overload |
200% F.S. |
Cable size |
Ø3×3000 mm |
Protection class |
IP65 |
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
