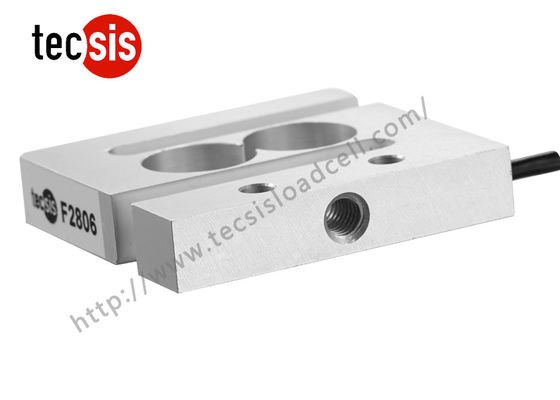

Product Name: F2806 S-Type Load Cell Structure: Compact
Material: Aluminum Alloy Or Alloy Steel Customized: Acceptable
Capacity: 1kg~200kg OEM/ODM: Acceptable
Theory: Resistance Sensor
High Light:

s beam load cell

,

shear type load cell

Small Compact Tank S-type Load Cells / Capacitive Load Cell With High Accuracy





Features :

  • Model:F2806
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Simple structure, easy to install
  • Small size, easy to use
  • Made of Aluminum alloy or Alloy steel
  • Capacity:1kg~200kg



Description:



F2806 has good output symmetry, compact structure, simple to install.

Because of its internal and external features, it can support compression and tension, and be mainly used for the tensile testing, for example, the testing of force gauge, this is a best choice in tensile testing machine,

It has full range of capacities (the minimum capacity is 1kg, the maximum is 200kg), so it is available for small weighing device, for 1~30kg, it is made of the Aluminum material, for 50~200kg, it is made of alloy steel. It has many limiting conditions on environment, so it is applied for dry and no corrosion environment.

High accuracy and high stability.

It comes complet 3.0m cable and you can choose AWG28#.

Measure tension and compression force.





Applications:



S-type designing can be installed easily, which be available for crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.03% F.S.

Hysteresis

0.03% F.S.

Repeatability

0.02% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

410±10Ω

385±10Ω (Alloy steel)

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

5V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø3×1500 mm
AWG28# (Option)

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



































































Size and capacity:



Small Compact Tank S-type Load Cells / Capacitive Load Cell With High Accuracy



Direction:



Small Compact Tank S-type Load Cells / Capacitive Load Cell With High Accuracy



Schematic Wiring Diagram :



Small Compact Tank S-type Load Cells / Capacitive Load Cell With High Accuracy



Product details:

Small Compact Tank S-type Load Cells / Capacitive Load Cell With High Accuracy
