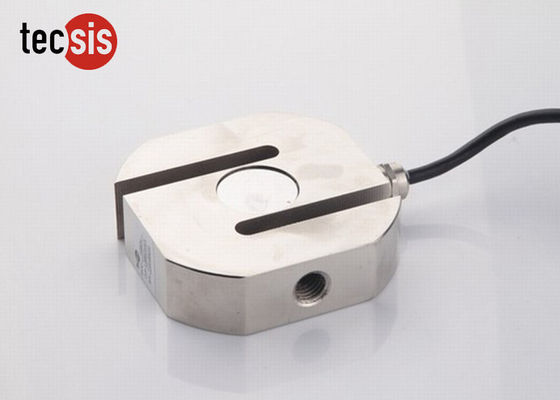

S-type Miniature Compression Load Cell 500kg In Mechanical And Electrical Scale

China S-type Miniature Compression Load Cell 500kg In Mechanical And Electrical Scale supplier

Large Image :  S-type Miniature Compression Load Cell 500kg In Mechanical And Electrical Scale

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F2804

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Features: Waterproof Product Name: F2804 S-Type Load Cell
Material: Alloy Steel Or Stainless Steel Customized: Acceptable
Capacity: 50kg~7500kg OEM/ODM: Acceptable
Structure: Compact Theory: Resistance Sensor
High Light:

shear type load cell

,

portable load cell

S-type Miniature Compression Load Cell 500kg In Mechanical And Electrical Scale





Features :

  • Model:F2804
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Compact structure, easy to install
  • Made of alloy steel or stainless steel
  • Good output
  • Capacity:50kg~7500kg



Description:



S-type designing can be installed easily, which be available for  crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.

This kind can be used single, and be used two or more sets together, but they must be connected with Rod Ends Spherical Plain bearings or connecting rod, which is beneficial for weighing device in the way of hoisting equipment.

F2804 is available in the capacities 50kg to7500kg, Alloy steel or stainless steel material makes it suitable for all kinds of hazardous environments.

Tension and compression load cell, S-type shape made of steel.
It is available in the capacities 50kg to 7500kg.
Alloy steel or stainless steel material makes it suitable for all kinds of hazardous environments.
The mounting holes are customization.
High accuracy.
It comes complete 3m cable.
The protection classs is IP67, waterproof.





Applications:



F2804 S-type load cell as its tension and compression features, it can be used in mechanical and electrical integration scales, crane scales, hopper scales and various special application scales and industrial measurement systems





Technical parameters:



Specifications

Technique

Rated output

2.0±5%mV/V

Zero balance

±2% F.S.

Non-linearity

0.03% F.S.

Hysteresis

0.03% F.S.

Repeatability

0.02% F.S.

Creep (30min)

0.03% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5*3000 mm

Protection class

IP65(≤500kg)

IP67(>500kg)

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



























































Size and capacity:



S-type Miniature Compression Load Cell 500kg In Mechanical And Electrical Scale



Schematic Wiring Diagram :



S-type Miniature Compression Load Cell 500kg In Mechanical And Electrical Scale
