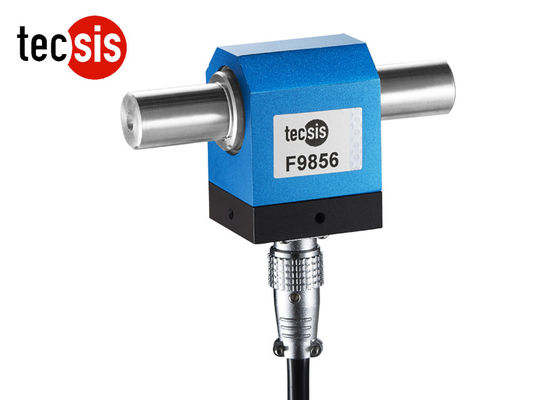

Column High Capacity Stainless Steel Load Cell Sensor For Torque Force Measurement

Certification
Good quality Tension Compression Load Cell for sales
Good quality Tension Compression Load Cell for sales
I'm Online Chat Now

Column High Capacity Stainless Steel Load Cell Sensor For Torque Force Measurement

China Column High Capacity Stainless Steel Load Cell Sensor For Torque Force Measurement supplier

Large Image :  Column High Capacity Stainless Steel Load Cell Sensor For Torque Force Measurement

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F9856

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F9856 Type: Column
Material: Aluminum Alloy Customized: Acceptable
Capacity: 10~100NM OEM/ODM: Acceptable
Protection Class: IP65 Usage: Torque Force Measurement

Column High Capacity Stainless Steel Load Cell Sensor For Torque Force Measurement





Features :

  • Model:F9856
  • Capacity: 10~100NM
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of Aluminum alloy
  • Delicate structure
  • Static torqie sensor



Description:



Static torque sensor with metal foil strain gauge technology and compact structure.

Made of aluminum alloy, there are six holes on both sidez of the load cell, this makes it easy to install, and it will be more stable to measure the torque force.

Mainly used for static, non-continuous rotational torque force measurement.





Application:



Used for dynamic industrial automation,automotive,screw fixation technology and measuring the drag torque of motors and pumps





Technical parameters:



Specifications

Technique

Rated output

1.0/2.0±10%mV/V

Zero blance 1% F.S.

Non-linearity

0.1% 0.3%0.5%F.S.

Hysteresis

0.1% 0.3%0.5%F.S.

Repeatability

0.1% 0.3%0.5%F.S.

Temp. effect on output

≤0.1% F.S. / 10ºC

Temp. effect on zero

≤0.1% F.S. / 10ºC

Max.rotary speed 4000/min

Input impedance

750/350±10Ω

Output impedance

750/350±5Ω

Recommended excitation

12V

Compensated temp. range

20~60ºC

Operation temp. range

- 10~60ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

3000mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:

Column High Capacity Stainless Steel Load Cell Sensor For Torque Force Measurement



Load Direction:



Column High Capacity Stainless Steel Load Cell Sensor For Torque Force Measurement



Schematic Wiring Diagram :



Column High Capacity Stainless Steel Load Cell Sensor For Torque Force Measurement



Product Details:

Column High Capacity Stainless Steel Load Cell Sensor For Torque Force Measurement
