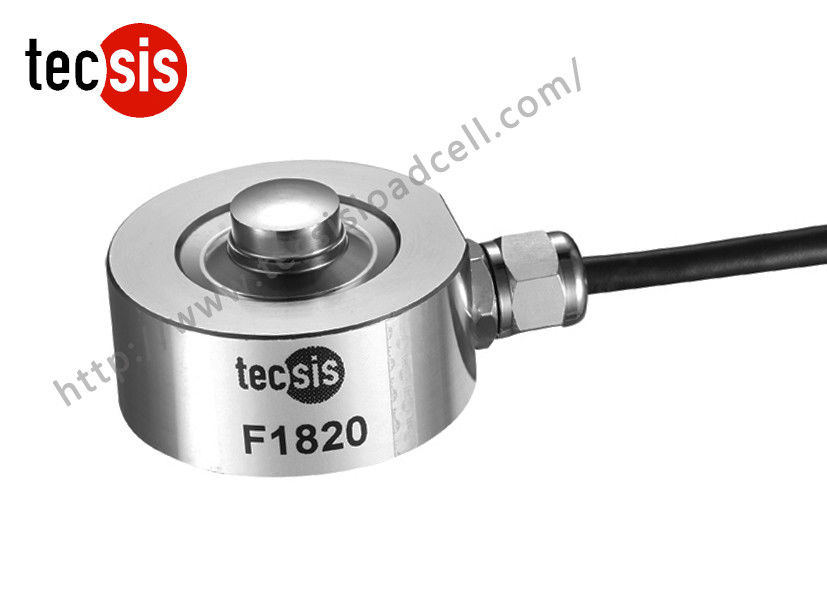

Product Name: F1820 Force Load Cell Height: 24 Mm
Material: Stainless Steel Customized: Acceptable
Capacity: 5kg~2t OEM/ODM: Acceptable
Protection Class: IP67 Usage: Force Measurement

Low Profile Stainless Steel Load Cell 5kg 20kg For Industrial Measurement





Features :

  • Model:F1820
  • Capacity: 5kg~2t
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Small deflection
  • Delicate structure, Low profile
  • Made of stainless steel



Description:



Compression load cell and designed for low profile compression service.


Its capacities range from 5kg to 2t, F1820 only has one size, the diameter is 40mm and the height is 24mm.


It comes complete with 1.5m of load cell cable.


It is easy to test the compression force.


Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications. Compact size with low profile.


Regarding the cable outlet , you can choose the spring ,as the picture shows.


The appearance is customizable.


It is suitable for a wide range of applications including testing or weighing systems. Measure the force in the limited space. Widely used for industrial measurement and control, R&D and other applications.


Used for mechanical assembling, stamping force test and control which precision requirements are undemanding.


Transient force measurement and control of dynamic stamping.





Application:



F1820 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Measure the force in the limited space. Widely used for industrial measurement and control, R&D and other applications.





Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.2% F.S.

Repeatability

0.2% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø4×1500 mm

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



























































Size and capacity:



Low Profile Stainless Steel Load Cell 5kg 20kg For Industrial Measurement



Load Direction:



Low Profile Stainless Steel Load Cell 5kg 20kg For Industrial Measurement



Schematic Wiring Diagram :



Low Profile Stainless Steel Load Cell 5kg 20kg For Industrial Measurement

Low Profile Stainless Steel Load Cell 5kg 20kg For Industrial Measurement
