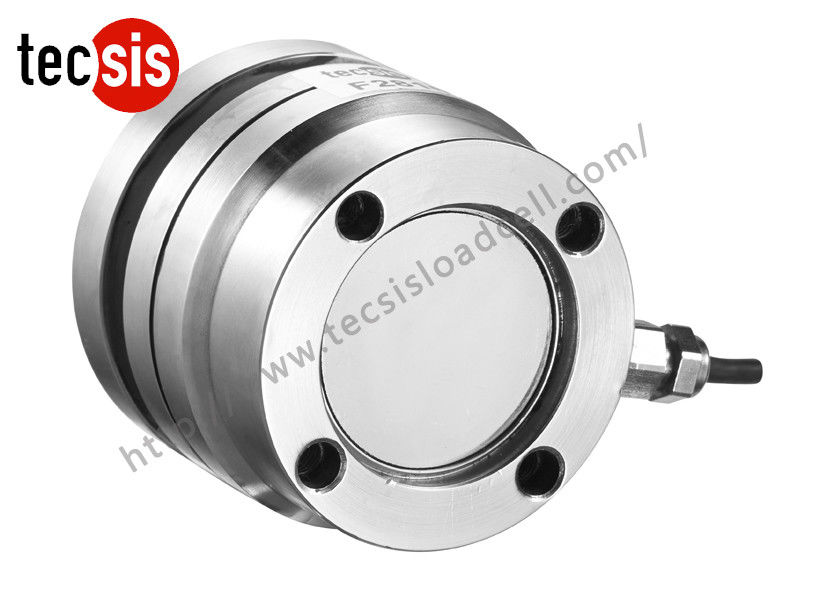

Product Name: F2816 Tension And Compression Load Cell Structure: Compact
Material: Stainless Steel Customized: Acceptable
Capacity: 0.5KN~100KN OEM/ODM: Acceptable
Theory: Resistance Sensor
High Light:

column type load cell

,

button load cell

Stainless Steel Force Sensor Compression And Tension Load Cell Transducer





Features :

  • Model:F2816
  • Simple structure, both sizes threads, easy to install
  • Large capacity
  • Made of stainless steel
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Capacity:0.5KN~100KN



Description:



F2816 Force transducer is available in the capacities 0.5KN to 100KN.



There are 4 holes on both sides of the load cell, this makes it easy to integrated into mechanical shaft.



The protection class is IP67, this makes it easy to used in kinds of harsh envirenment.



It comes with complete 2.0m cable.



It has a big force area, so the force will be more accurate.



Mainly used for compression force measuring systems.





Applications:



Mainly used for compression force measuring systems.





Technical parameters:



Specifications

Technique

Rated output

1.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

≤0.5% F.S.

Hysteresis

0.1% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

780±10Ω

Output impedance

700±5Ω

Insulation

≥5000MΩ / 50VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø3*2000 mm

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);































































Size and capacity:



Stainless Steel Force Sensor Compression And Tension Load Cell Transducer



Schematic Wiring Diagram :



Stainless Steel Force Sensor Compression And Tension Load Cell Transducer

Stainless Steel Force Sensor Compression And Tension Load Cell Transducer
