Stainless Steel Rod End Load Cell With Weighing Indicator For Truck Scale

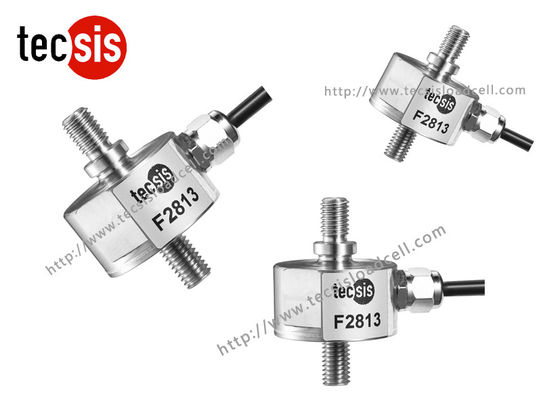

Large Image : Stainless Steel Rod End Load Cell With Weighing Indicator For Truck Scale

Product Details:

Place of Origin:	China
Brand Name:	tecsis
Model Number:	F2813

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	Standard: carton
Delivery Time:	Stock product:3~5 working days , No stock:10~35 days
Payment Terms:	L/C, T/T
Supply Ability:	20,000pcs per month

Contact Now

Detailed Product Description

Product Name:	F2813 Tension And Compression Load Cell	Structure:	Compact
Material:	Stainless Steel	Customized:	Acceptable
Capacity:	150kg~500kg	OEM/ODM:	Acceptable
Theory:	Resistance Sensor
High Light:	button load cell , waterproof load cell

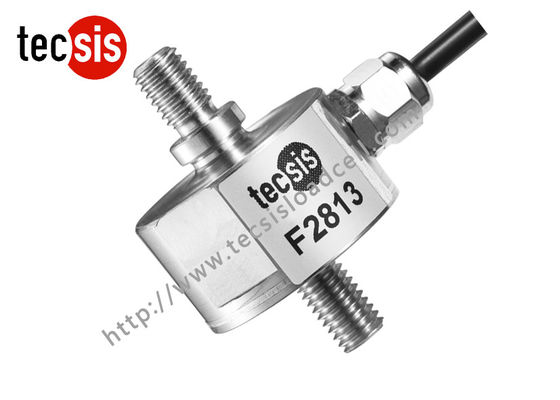

Stainless Steel Rod End Load Cell With Weighing Indicator For Truck Scale

Features :

Model:F2813
Tension and compression load cell
High comprehensive precision, high stability
Simple structure, both sides threads, easy to install
Large capacity
Made of stainless steel
Capacity:150kg~500kg
Diameter:34mm

Description:

F2813 Force transducer is available in the capacities 150kg to 500kg, compare to F2811, it can measure large capacity. There are M8 threads on both sides of the load cell, this makes it easy to integrated into mechanical shaft.

F2813 Force transducer can be used single, it can be used for the small space or limited environment (if the output is rationalized). single load cell can be matched with weighing indicator, converting what you want to. It is made of stainless steel, this makes it has good stability. The protection class is IP67, it can be used in harsh environments.

As a force transducer, it is suitable for a wide range of applications including testing or weighing systems, for example, the weighing systems of material testing machines and Dynamometers.

Applications:

Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.

Technical parameters:

Specifications	Technique
Rated output	1.5±10%mV/V
Zero balance	±2% F.S.
Non-linearity	0.5% F.S.
Hysteresis	0.5% F.S.
Repeatability	0.5% F.S.
Creep (30min)	0.1% F.S.
Temp. effect on output	0.05% F.S. / 10ºC
Temp. effect on zero	0.05% F.S. / 10ºC
Input impedance	385±10Ω
Output impedance	350±5Ω
Insulation	≥2000MΩ / 100VDC
Recommended excitation	5~10V
Maximum excitation	15V
Compensated temp. range	- 10~60ºC
Operation temp. range	- 20~80ºC
Safe overload	120% F.S.
Ultimate overload	150% F.S.
Cable size	Ø4*1500 mm
Protection class	IP67
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
