Product Name: F2814 Tension And Compression Load Cell Structure: Compact
Material: Stainless Steel Customized: Acceptable
Capacity: 1KN~20KN OEM/ODM: Acceptable
Theory: Resistance Sensor

Small Stainless Steel Load Cell Weighing System With High Capacity 150kg - 500kg





Features :

  • Model:F2814
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Simple structure, both sides threads, easy to install
  • Large capacity
  • Made of stainless steel
  • Capacity:1KN~20KN



Description:

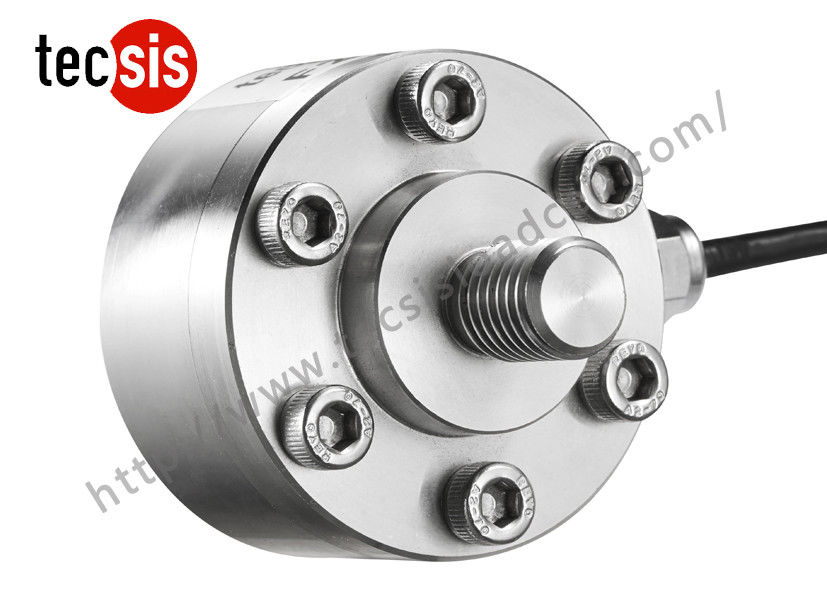

F2814 Force transducer is available in the capacities 1KN to 20KN. There are M12 threads on both sides of the load cell, this makes it easy to integrated into mechanical shaft.



F2814 Force transducer can be used single, there are 6 holes on one side of the load cell, it can mount the load cell easily. It is made of stainless steel, this makes it has good stability.



As a force transducer, it is suitable for a wide range of applications including testing or weighing systems, for example, the weighing systems of material testing machines and Dynamometers.





Applications:



Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.





Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

≤0.5% F.S.

Hysteresis

0.1% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ / 50VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5*1500 mm

Protection class

IP66

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

























































Size and capacity:



Small Stainless Steel Load Cell Weighing System With High Capacity 150kg - 500kg



Schematic Wiring Diagram :



Small Stainless Steel Load Cell Weighing System With High Capacity 150kg - 500kg

Small Stainless Steel Load Cell Weighing System With High Capacity 150kg - 500kg
