Single Stainless Steel Testing Compressive Load Cell Strain Gauge 10kg 100kg

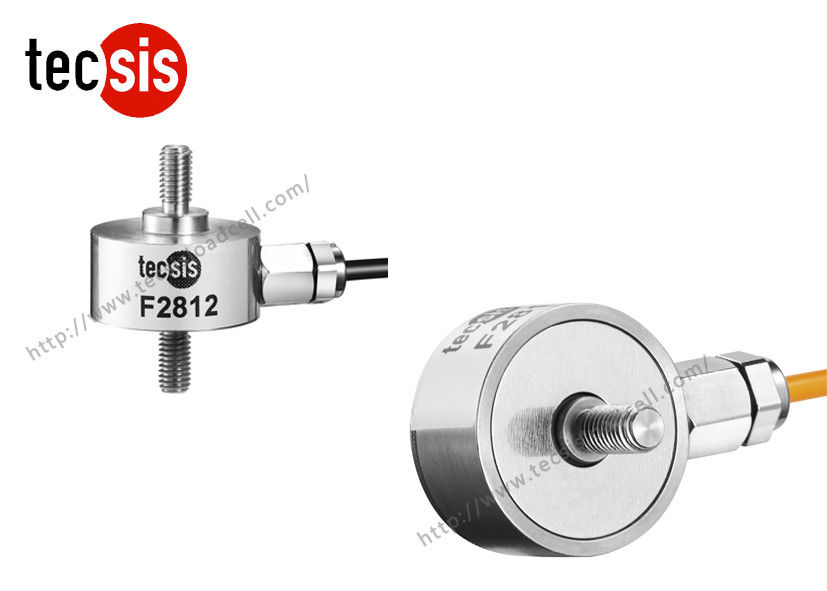

: Large Image : Single Stainless Steel Testing Compressive Load Cell Strain Gauge 10kg 100kg

Product Details:

Place of Origin:	China
Brand Name:	tecsis
Model Number:	F2812

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	Standard: carton
Delivery Time:	Stock product:3~5 working days , No stock:10~35 days
Payment Terms:	L/C, T/T
Supply Ability:	20,000pcs per month

Contact Now

Detailed Product Description

Product Name:	F2812 Tension And Compression Load Cell	Structure:	Compact
Material:	Stainless Steel	Customized:	Acceptable
Capacity:	5kg~100kg	OEM/ODM:	Acceptable
Theory:	Resistance Sensor
High Light:	column type load cell , button load cell

Single Stainless Steel Testing Compressive Load Cell Strain Gauge 10kg 100kg

Features :

Model:F2812
Tension and compression load cell
Small size, easy to use
Made of stainless steel
Capacity:5kg~100kg
Diameter:25.4mm
High comprehensive precision, high stability
Simple structure, both sides threads, easy to install

Description:

F2812 Force transducer is available in the capacities 5kg to 100kg.

The accuracy is very high.

It can measure tension and compression force.

It is made of stainless steel.

Its structure is very delicate, the diameter is 25.4mm, there are M5/M6 threads on both sides of the load cell, this makes it easy to integrated into mechanical shaft.

F2812 Force transducer can be used single, it can be used for the small space or limited environment (if the output is rationalized). single load cell can be matched with weighing indicator, converting what you want to.

As a force transducer, it is suitable for a wide range of applications including testing or weighing systems, for example, the weighing systems of material testing machines and Dynamometers.

Applications:

Mainly used for key and elasticity test of computers, level indicator, easy installed miniature tension and pressure test equipment (like manipulator),
other force measurement application.

Technical parameters:

Specifications	Technique
Rated output	2.0±10%mV/V
Zero balance	±2% F.S.
Non-linearity	0.25% F.S.
Hysteresis	0.25% F.S.
Repeatability	0.25% F.S.
Creep (30min)	0.25% F.S.
Temp. effect on output	0.05% F.S. / 10ºC
Temp. effect on zero	0.05% F.S. / 10ºC
Input impedance	700±30Ω
Output impedance	700±5Ω
Insulation	≥5000MΩ / 100VDC
Recommended excitation	10V
Maximum excitation	15V
Compensated temp. range	- 10~60ºC
Operation temp. range	- 20~80ºC
Safe overload	120% F.S.
Ultimate overload	200% F.S.
Cable size	Ø3*1500 mm
Protection class	IP66
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
