Custom Industrial Stainless Steel Load Cell Sensors , Tank Weighing Load Cells

China Custom Industrial Stainless Steel Load Cell Sensors , Tank Weighing Load Cells supplier

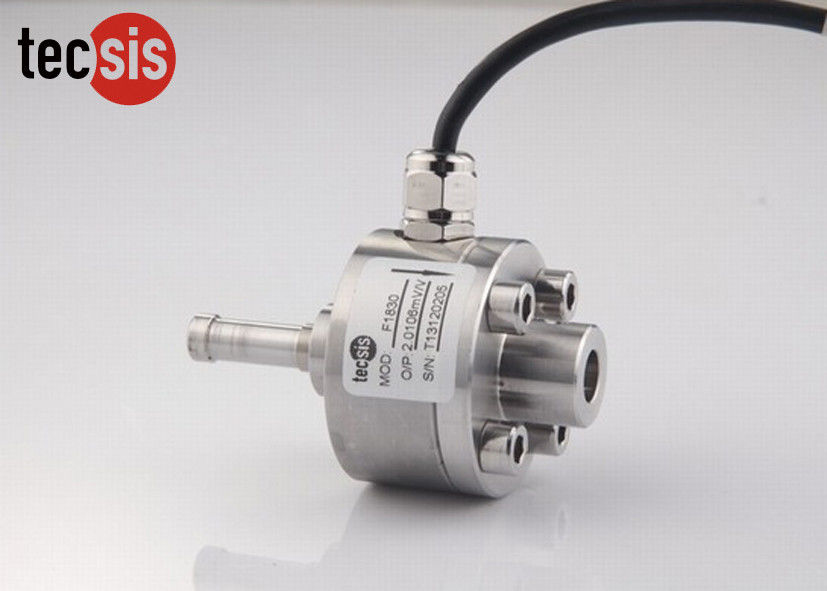

Large Image :  Custom Industrial Stainless Steel Load Cell Sensors , Tank Weighing Load Cells

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F1830

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F1830 Compression Load Sensor Rated Output: 1.5±10%mV/V
Material: Stainless Steel Customized: Acceptable
Capacity: 0.5~5KN OEM/ODM: Acceptable
Protection Class: IP66 Usage: Press Force Measurement

Custom Industrial Stainless Steel Load Cell Sensors , Tank Weighing Load Cells





Features :

  • Model:F1830
  • Capacity: 0.5KN~5KN
  • Made of stainless steel
  • Small deflection
  • Delicate structure
  • Good ultimate overload
  • High comprehensive precision, high stability



Description:



Stainless steel compression load cell.



Designed for press fitting equipment.



The height is 67mm and the max diameter is 40mm.



lts capacities 0.5KN to 5KN and it comes complete with 1.5m of load cell cable.



It is made of stainless steel, this makes it can be used for most industrial environments.



There are 4 holes on one side, this makes it easy to install.



Mainly used for press machines and press fitting equipment, can be designed according to the actual press machine.





Application:



F1830 is mainly used for press machines and press fitting equipment, can be designed according to the actual press machine.





Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

≤0.5% F.S.

Hysteresis

0.1% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

385±30Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø4×1500 mm

Protection class

IP66

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:



Custom Industrial Stainless Steel Load Cell Sensors , Tank Weighing Load Cells





Schematic Wiring Diagram :



Custom Industrial Stainless Steel Load Cell Sensors , Tank Weighing Load Cells
