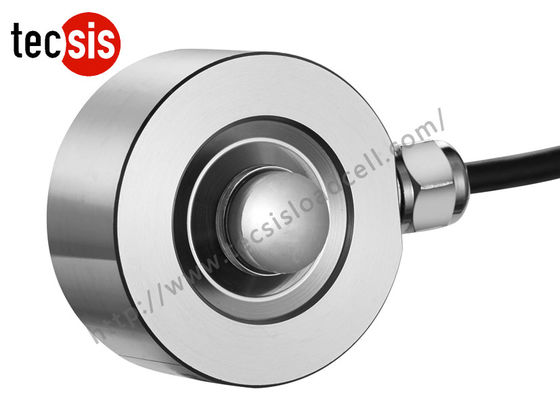

Impact Column Type Button Miniature Compression Load Cell 20kg To 10t

China Impact Column Type Button Miniature Compression Load Cell 20kg To 10t supplier
Impact Column Type Button Miniature Compression Load Cell 20kg To 10t supplier Impact Column Type Button Miniature Compression Load Cell 20kg To 10t supplier

Large Image :  Impact Column Type Button Miniature Compression Load Cell 20kg To 10t

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F1821

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F1821 Compression Load Cell Diameter: 50mm
Material: Stainless Steel Customized: Acceptable
Capacity: 20kg~10t OEM/ODM: Acceptable
Protection Class: IP66 Usage: Force Measurement
High Light:

column type load cell

,

button load cell

Impact Column Type Button Miniature Compression Load Cell 20kg To 10t





Features :

  • Model:F1821
  • Capacity: 20kg~10t
  • Simple structure, four holes, easy to install
  • High comprehensive precision, high stability
  • Made of stainless steel
  • Small deflection
  • Delicate structure, Low profile
  • Compression load cell
  • Button type load cell



Description:



F1821  is designed for low profile compression service. lts compact size makes the cell ideal for a wide range of applications including testing & weighing systems , R&D and other applications .

lts capacities range from 20kg to 10t and it comes complete with 3m of load cell cable. The cable outlet is pressing nut.

Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications. Compact size with low profile.

The diameter is 50mm and the height is 25mm, this can be suitable for many applications.

There are four holes in the background of the load cell, this makes it easy to install.

As the cable outlet is pressing nut, the protection class can be IP66.





Application:



F1821 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Widely used for industrial measurement and control, R&D and other applications





Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±3% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.1% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±3Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø4×3000 mm

Protection class

IP66

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



























































Size and capacity:



Impact Column Type Button Miniature Compression Load Cell 20kg To 10t



Load direction:

Impact Column Type Button Miniature Compression Load Cell 20kg To 10t



Schematic Wiring Diagram :



Impact Column Type Button Miniature Compression Load Cell 20kg To 10t

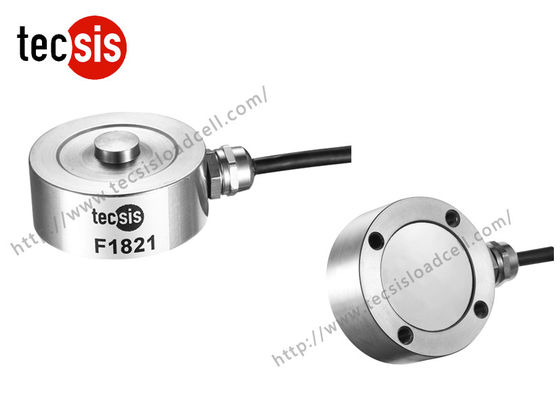

Product details:

Impact Column Type Button Miniature Compression Load Cell 20kg To 10t
