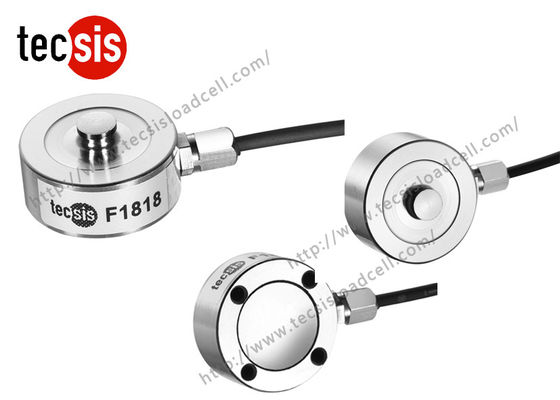

Product Name: F1818 Small Size Compression Load Cell Height: 11mm
Material: Stainless Steel Customized: Acceptable
Capacity: 5kg~2t OEM/ODM: Acceptable
Protection Class: IP64 Usage: Force Measurement

Micro Low Profile Stainless Steel Load Cell Compression Type 5kg To 2000kg





Features :

  • Model:F1818
  • Capacity: 5kg~2t
  • Simple structure, easy to install
  • Diameter 20mm, height 11mm
  • High comprehensive precision, high stability
  • Made of stainless steel
  • Small deflection
  • Delicate structure, Low profile
  • Miniature compression load cell



Description:



F1818 miniature type is designed for low profile compression service. lts compact size makes the load cell ideal for a wide range of applications including testing & weighing systems , R&D and other applications .



lts capacities range from 5Kg to 2t and it comes complete with 1.5m of load cell cable. The diameter is 20mm and the height is 11mm.



Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications. Compact size with low profile.



The protection class is IP 64.



There are four holes in the background of the load cell, this makes it easy to install.



F1818 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Measure the force in the limited space.





Application:



F1818 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Measure the force in the limited space.





Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

≤0.5% F.S.

Hysteresis

0.5% F.S.

Repeatability

0.1% F.S.

Temp. effect on output

0.36% F.S. / 10ºC

Temp. effect on zero

0.18% F.S. / 10ºC

Input impedance

350±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

5V

Maximum excitation

7V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø2×3000 mm

Protection class

IP64

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:



Micro Low Profile Stainless Steel Load Cell Compression Type 5kg To 2000kg



Load Direction:



Micro Low Profile Stainless Steel Load Cell Compression Type 5kg To 2000kg





Schematic Wiring Diagram :



Micro Low Profile Stainless Steel Load Cell Compression Type 5kg To 2000kg



Product Details:



Micro Low Profile Stainless Steel Load Cell Compression Type 5kg To 2000kg
