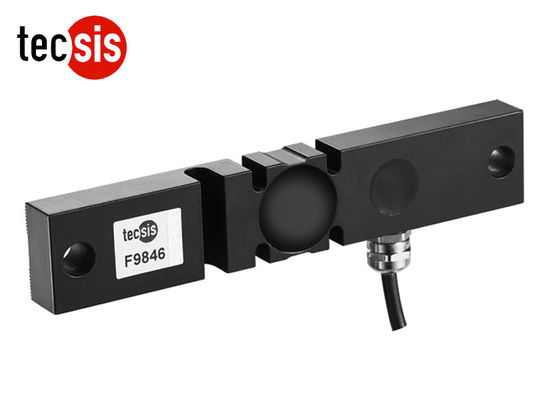

Small Strain Type Stainless Steel Load Cell Sensor Compact High Stability
Features :
Description:
F9846 strain transducer is available in the capacities 200~1000με.
The protection class is IP65, this makes it easy to used in kinds of harsh envirenments.
It has a high accuracy and easy to install.
It has a good long term stability.
Strong shock resistance
Applications:
Suitable for large capacity equipment
Suitable for equipment where it is inconvenient to install other force transducer
Technical parameters:
Specifications |
Technique |
Zero balance |
±2% F.S. |
Total error |
1% F.S. |
Non-Linearity | 1% F.S. |
Temp. effect on output |
0.2% F.S. / 10ºC |
Temp. effect on zero |
0.2% F.S. / 10ºC |
Input impedance |
400±50Ω |
Output impedance |
352±3Ω |
Recommended excitation |
5~10VDC |
Maximum excitation |
15VDC |
Compensated temp. range |
- 10~40ºC |
Operation temp. range |
- 20~80ºC |
Safe overload |
120% F.S. |
Ultimate overload |
150% F.S. |
Cable size |
Ø5*5000 mm |
Protection class |
IP65 |
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
