Product Name: | F9843 Rail Way Load Cell | Structure: | Compact |
---|---|---|---|
Material: | Stainless Steel | Customized: | Acceptable |
Capacity: | 2/3/5t | OEM/ODM: | Acceptable |
Theory: | Resistance Sensor | ||
High Light: | column type load cell,button load cell |
Rail Way Miniature Load Cell Weight Scale For Weighing Goods Wagons
Features :
Description:

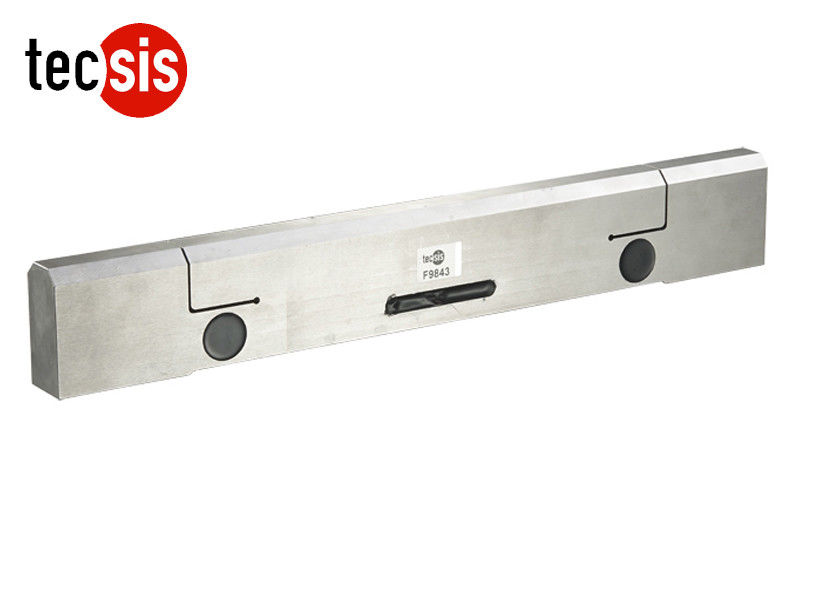

F9843 Force transducer is available in the capacities 2/3/5t. The size is 480mm*116mm.
The protection class is IP67, this makes it easy to used in kinds of harsh envirenments.
It has a high accuracy and easy to install. Its weight is 7.5kg.
It has a good long term stability.
It is easy to install.
It can Jitter effects while goods wagons running are minimized.
Applications:
Suitable for all kinds of rail weighbridge, dynamic and static weighing occasions
Technical parameters:
Specifications |
Technique |
Rated output |
2.0±0.5% mV/V |
Zero balance |
±2% F.S. |
Non-linearity |
0.1% F.S. |
Total error |
0.1% F.S. |
Temp. effect on output |
0.2% F.S. / 10ºC |
Temp. effect on zero |
0.2% F.S. / 10ºC |
Input impedance |
750±30Ω |
Output impedance |
702±3Ω |
Recommended excitation |
5~10VDC |
Maximum excitation |
15VDC |
Compensated temp. range |
- 10~40ºC |
Operation temp. range |
- 20~80ºC |
Safe overload |
120% F.S. |
Ultimate overload |
150% F.S. |
Cable size |
Ø6*3000 mm |
Protection class |
IP67 |
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
