Product Name: F2822 Tension Compression Load Cell Configuration: Pancake Type
Material: Alloy Steel Customized: Acceptable
Capacity: 0.5t~50t OEM/ODM: Acceptable
Theory: Resistance Sensor Protection Class: IP67
High Light:

platform load cell

,

Pancake Load Cell

High Capacity Pancake Truck Scale Tension Compression Load Cell Of Alloy Steel





Features :

  • Model:F2822
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Made of alloy steel
  • Capacity:0.5t~50t
  • Configuration: Pancake type



Description:

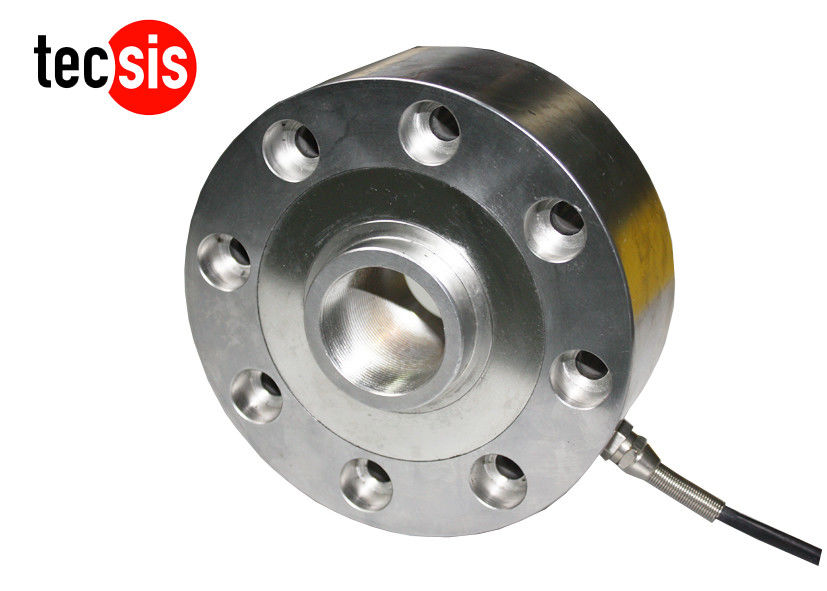

F2822 Pancake Load Cell (Tension Base) is specially designed for high capacity applications in both tension and compression.

The load cell includes eight bolt-down holes along its outer diameter for ease of mounting.



The cell is available in alloy steel and comes in various optional versions such as amplified version readily available.

The standard F2822 Pancake Load Cell offers easy customization and modification as per need and most models are in our inventory making them available for quick delivery.



The Pancake Load Cell uses metal foil strain gauge technology and is manufactured in Shenzhen China.

The protection class is IP67, waterproof, it is suitable for harsh environment.



Mainly used for platform scales, truck scales, floor scales and industrial weighing systems.



Applications:



Mainly used for platform scales, truck scales, floor scales and industrial weighing systems.





Technical parameters:



Specifications

Technique

Rated output

2.0±1%mV/V

Zero balance

±1% F.S.

Non-linearity

0.05% F.S.

Hysteresis

0.03% F.S.

Repeatability

0.05% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.03% F.S. / 10ºC

Temp. effect on zero

0.03% F.S. / 10ºC

Input impedance

7500±10Ω

Output impedance

700±5Ω

Insulation

≥5000MΩ / 50VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5×3000 mm

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);































































Size and capacity:



High Capacity Pancake Truck Scale Tension Compression Load Cell Of Alloy Steel



Schematic Wiring Diagram :



High Capacity Pancake Truck Scale Tension Compression Load Cell Of Alloy Steel
