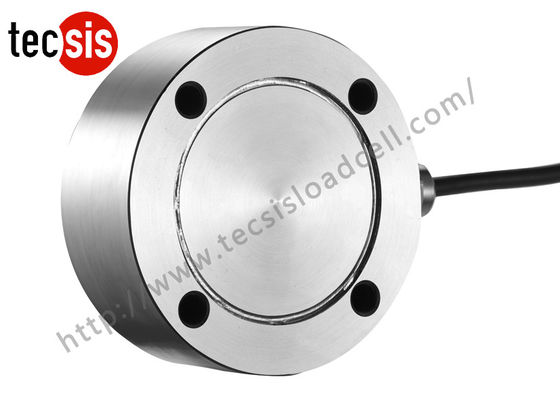

Simple Electronic Truck Scale Load Cells With Stainless Steel And Low Profile
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | F1811 Compression Load Cell | Application: | Weighing Systems |
|---|---|---|---|
| Material: | Stainless Steel | Customized: | Acceptable |
| Capacity: | 250kg~100t | OEM/ODM: | Acceptable |
| Protection Class: | IP67 | Amplifier: | Acceptable |
| High Light: | tank weighing load cells,platform load cell |
||
Simple Electronic Truck Scale Load Cells With Stainless Steel And Low Profile
Features :

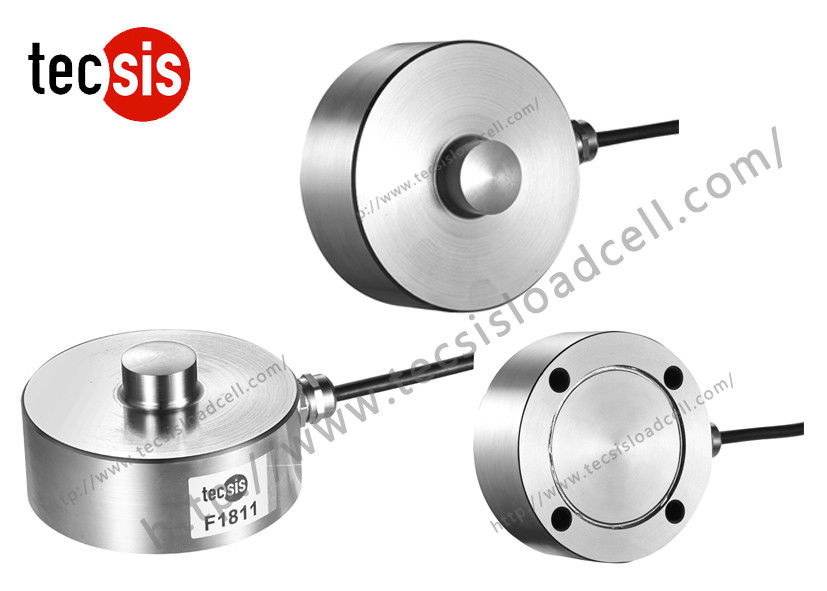

- Model:F1811
- Samll deflection
- Low profile
- Simple structure, easy to install
- Made of stainless steel
- Diametion: 82mm~165mm
- IP67
applications:
Low profile pancake load cell
Made of Stainless steel, fully welded seal with stainless steel cover
IP67, it is waterproof and moisture-proof
Compact structure, easy to install
Various applications such as pressing machine, bearing assembly machine, axle wheel identifying
Mainly used for electronic truck scale, ground scale, tank and other weighing systems
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
1.5±10%mV/V |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
0.1% F.S. |
|
Hysteresis |
0.1% F.S. |
|
Repeatability |
0.1% F.S. |
|
Creep (30min) |
0.1% F.S. |
|
Temp. effect on output |
0.05% F.S. / 10ºC |
|
Temp. effect on zero |
0.05% F.S. / 10ºC |
|
Input impedance |
750±10Ω |
|
Output impedance |
700±5Ω |
|
Insulation |
≥5000MΩ/ 100VDC |
|
Recommended excitation |
10V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~60ºC |
|
Operation temp. range |
- 20~80ºC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
200% F.S. |
|
Cable size |
Ø5×5000 mm |
|
Protection class |
IP67 |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Load Direction:
Schematic Wiring Diagram :
Product Detaisl:
