Product Name: | F4801 | Type: | Single Point Load Cell |
---|---|---|---|
Material: | Aluminum Alloy | Customized: | Acceptable |
Capacity: | 3kg~250kg | OEM/ODM: | Acceptable |
Protection Class: | IP65 | Usage: | Weighing System |
High Light: | tension load cell,load cell sensors |
High Accuracy Strain Gauge Compression Load Cell for Weighing Scale
Features :
Description:

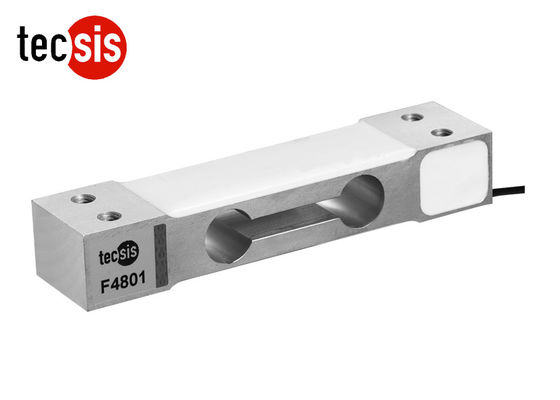

F4801 is a kind of Single Point Load Cell, It is made of aluminum alloy, and its surface must be anodized. The protection level reaches to IP65, which provide excellent protection against moisture ingression.
F4801 load cell is available in the capacities 3kg to 250kg, its structure is very compact, very light, small size with profile, and easy to install, has the function of high stability, F4801 is designed for electronic scales and platform scales where only one load cell can be used and low profile is required. Recommended platform size is 250mm×300mm, the design is most suitable for mass production operations.
F4801 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.
Application:
F4801 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.
Technical parameters:
Specifications |
Technique |
Rated output |
2.0±10%mV/V |
Zero balance |
±2% F.S. |
Non-linearity |
0.02% F.S. |
Hysteresis |
0.02% F.S. |
Repeatability |
0.02% F.S. |
Creep (30min) |
0.02% F.S. |
Temp. effect on output |
0.02% F.S. / 10ºC |
Temp. effect on zero |
0.02% F.S. / 10ºC |
Input impedance |
410±10Ω |
Output impedance |
350±5Ω |
Insulation |
≥5000MΩ/ 100VDC |
Recommended excitation |
10V |
Maximum excitation |
15V |
Compensated temp. range |
- 10~40ºC |
Operation temp. range |
- 20~60ºC |
Safe overload |
150% F.S. |
Ultimate overload |
200% F.S. |
Cable size |
Ø3×450 mm |
Protection class |
IP65 |
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
