Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity

China Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity supplier
Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity supplier Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity supplier

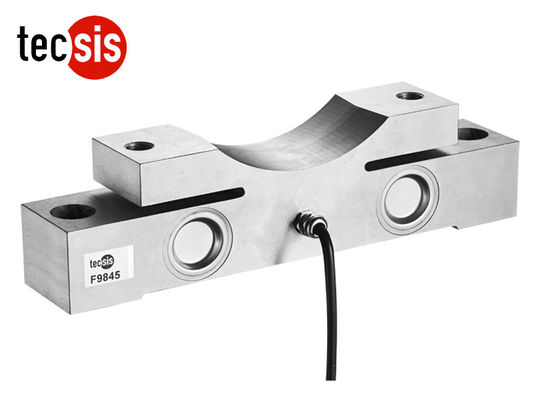

Large Image :  Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F9845

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F9845 Crane Load Cell Structure: Compact
Material: Stainless Steel Customized: Acceptable
Capacity: 10t~110t OEM/ODM: Acceptable
Theory: Resistance Sensor
High Light:

tension load cell

,

load cell sensors

Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity



Features :

  • Model:F9845
  • Fish back sensor
  • Strong shock resistance, long term stability
  • Capacity:10t~110t
  • Made of alloy steel
  • Easy to install and replace non weighing parts



Description:



F9845 Force transducer is available in the capacities 10t~110t.

The protection class is IP67, this makes it easy to used in kinds of harsh envirenments.



It has a high accuracy and easy to install. Its weight is 7.7kg.

It has a good long term stability.

Strong shock resistance,long term stability

Wide range,IP 67 protection




Applications:



Suitable for all kinds of cranes.



Technical parameters:



Specifications

Technique

Rated output

2.0±1% mV/V(10t~30t)

1.5±1% mV/V(40t~110t)

Zero balance

±2% F.S.

Total error

≤0.1% F.S.(10t~30t)

≤0.2% F.S.(40t~60t)

≤0.3% F.S.(80t~110t)

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

750±50Ω

Output impedance

702±3Ω

Recommended excitation

5~10VDC

Maximum excitation

15VDC

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5*10000 mm

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





















































Size and capacity:



Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity

Load Direction:



Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity



Schematic Wiring Diagram :



Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity

Product Details:



Compact Crane Strain Gauge Load Cell Sensors 10T - 110T CapacityCompact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity
