Through Hole Bending Beam Load Cell Transducer Techniques For Tank Weighing

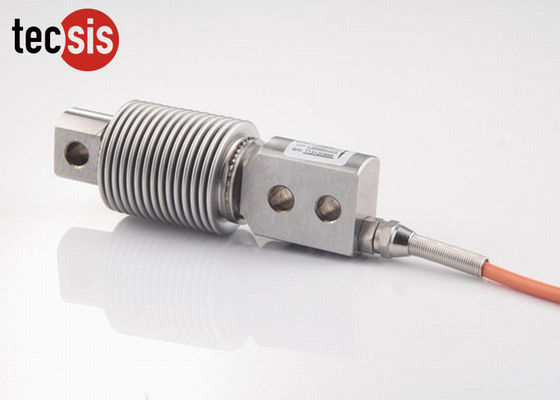

: Large Image : Through Hole Bending Beam Load Cell Transducer Techniques For Tank Weighing

Product Details:

Place of Origin:	China
Brand Name:	tecsis
Model Number:	F3833

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	Standard: carton
Delivery Time:	Stock product:3~5 working days , No stock:10~35 days
Payment Terms:	L/C, T/T
Supply Ability:	20,000pcs per month

Contact Now

Detailed Product Description

Product Name:	F3833	Type:	Bending Beam
Material:	Stainless Steel	Customized:	Acceptable
Capacity:	20kg~1500kg	OEM/ODM:	Acceptable
Protection Class:	IP67	Usage:	Weighing System
High Light:	beam type load cell , load cell transducer

Through Hole Bending Beam Load Cell Transducer Techniques For Tank Weighing

Features :

Model:F3833
Capacity: 20kg~1500kg
Simple structure, easy to install
High comprehensive precision, high stability
Made of stainless steel
Small deflection
Delicate structure

Description:

F3833 is a kind of Double Ended Bending Beam Load Cell, it belongs to Compression Load Cell.

It is made of Stainless steel, it is fully potted with special chemical compounds to IP67 to protect the cell from water and moisture attack.

The capacity of anti deviated load and impact is very strong.

F3833 load cell is welded-on metal bellows, it is available in the capacities 20kg to 1500kg.

Its structure is very compact, it belong to high capacities with low profile, on the process of making this load cell, there is unavoidable to arise side force in the normal operations,

The design of head structure provides excellent performance, which can reset and ensure the force transferring, the typical example for side force resistance is the application motor truck scales.

F3833 load cell can be used for Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

Application:

F3833 is suitable for the fields of Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

Technical parameters:

Specifications	Technique
Rated output	2.0±1%mV/V
Zero balance	±2% F.S.
Non-linearity	0.03% F.S.
Hysteresis	0.02% F.S.
Repeatability	0.02% F.S.
Creep (30min)	0.03% F.S.
Temp. effect on output	0.03% F.S. / 10ºC
Temp. effect on zero	0.03% F.S. / 10ºC
Input impedance	385±10Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/ 100VDC
Recommended excitation	10V
Maximum excitation	15V
Compensated temp. range	- 10~60ºC
Operation temp. range	- 20~80ºC
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Cable size	Ø5×3000 mm
Protection class	IP67
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
