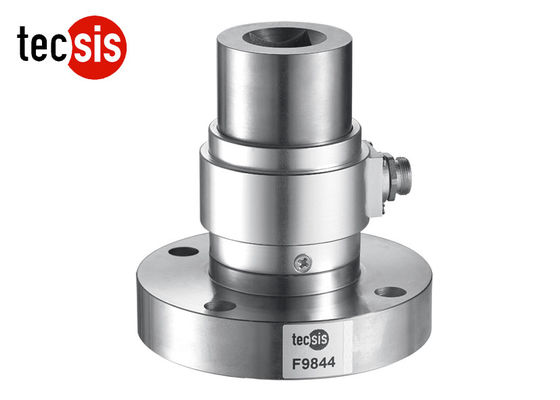

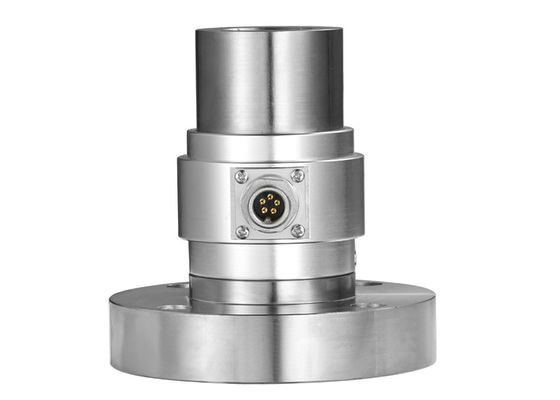

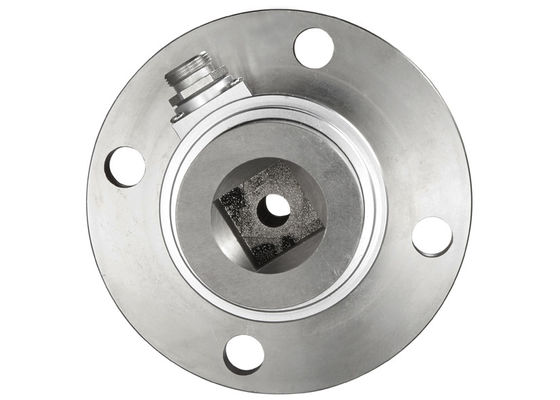

IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | F9844 | Type: | Column |
|---|---|---|---|
| Material: | Stainless Steel/Alloy Steel | Customized: | Acceptable |
| Capacity: | 200Nm~800Nm | OEM/ODM: | Acceptable |
| Protection Class: | IP65 | Usage: | Torque Force Measurement |
| High Light: | column type load cell,button load cell |
||
IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge
Features :
- Model:F9844
- Capacity: 200Nm~800Nm
- Simple structure, easy to install
- High comprehensive precision, high stability
- Stainless steel or Alloy steel( optional)
- Delicate structure
- Static torque sensor
Description:
Static torque sensor with metal foil strain gauge technology and compact structure.
It is easy to install, and it will be more stable to measure the torque force.
Application:
Mainly used for static, non-continuous rotational torque force measurement.
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
2.0±10%mV/V |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
0.25% F.S. |
|
Total error |
0.25% F.S. |
|
Temp. effect on output |
0.2% F.S. / 10ºC |
|
Temp. effect on zero |
0.2% F.S. / 10ºC |
|
Input impedance |
400±20Ω |
|
Output impedance |
350±5Ω |
|
Recommended excitation |
5~10V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~40ºC |
|
Operation temp. range |
- 20~80ºC |
|
Safe overload |
120% F.S. |
|
Ultimate overload |
150% F.S. |
|
Cable size |
Ø5×3000mm |
|
Protection class |
IP65 |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Load Direction:
Schematic Wiring Diagram :
