Features :

• Model: F4818
• Capacity:  20kg~500kg
• Simple structure, easy to install
• High comprehensive precision, high stability
• Made of aluminum alloy
• IP65 protection
• Delicate structure



Description:

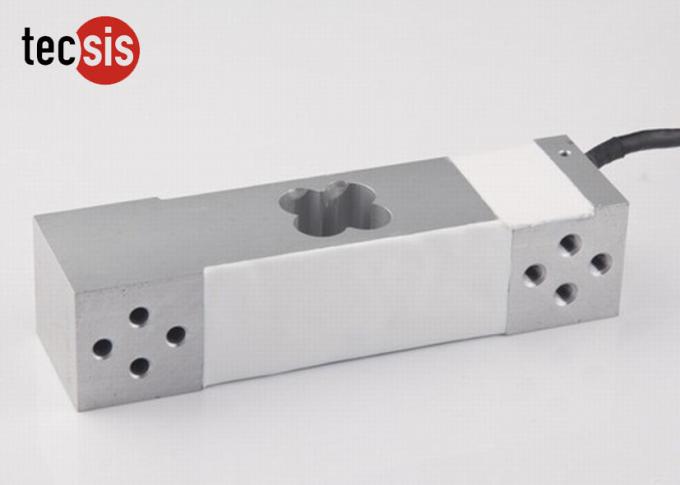

F4818 is a kind of Single Point Load Cell, It is made of aluminum alloy.



There are 4 holes on both sides, it will be more accurate to maesure the force and easy to install.



The capacity is 20~500kg and the size is 150*40*35mm.



It comes with complete 1.5m cable.



The protection level reaches to IP65.



Recommended platform size is 450mm×450mm.



F4818 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Application:



F4818 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Technical parameters:



Specifications	Technique
Rated output	2.0±10%mV/V
Zero balance	±2% F.S.
Non-linearity	0.02% F.S.
Hysteresis	0.02% F.S.
Repeatability	0.02% F.S.
Creep (30min)	0.02% F.S.
Temp. effect on output	0.025% F.S. / 10ºC
Temp. effect on zero	0.025% F.S. / 10ºC
Input impedance	410±10Ω
Output impedance	350±5Ω
Insulation	≥2000MΩ/ 100VDC
Recommended excitation	10V
Maximum excitation	15V
Compensated temp. range	- 10~40ºC
Operation temp. range	- 20~60ºC
Safe overload	120% F.S.
Ultimate overload	200% F.S.
Cable size	Ø5×1500 mm
Platform size	450×450mm
Protection class	IP65
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
