Product Name: | F4802 | Type: | Single Point Load Cell |
---|---|---|---|
Material: | Aluminum Alloy | Customized: | Acceptable |
Capacity: | 0.3kg~10kg | OEM/ODM: | Acceptable |
Protection Class: | IP65 | Usage: | Weighing System |
High Light: | load cell strain gauge,precision load cell |
Weighing Scale Beam Force Sensor Load Cell Sensor Of Aluminum Alloy
Features :
Description:

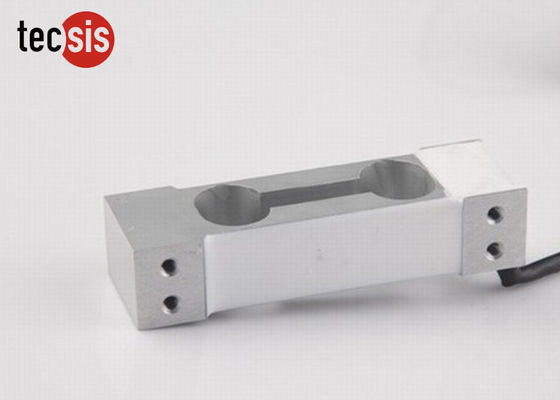

F4802 load cell is available in the capacities 0.3kg to 10kg. It is suitable for small devices.
The accuracy is very high.
It comes with complete 450mm cable.
It is 70mm long.
F4802 is a kind of Single Point Load Cell, It is made of aluminum alloy, and its surface must be anodized.
The protection level reaches to IP65, which provide excellent protection against moisture ingression.
Its structure is very compact, very light, small size with profile, and easy to install, has the function of high stability.
Recommended platform size is 200mm×200mm.
F4802 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.
Application:
F4802 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.
Technical parameters:
Specifications |
Technique |
Rated output |
1.0±10%mV/V (0.3~0.5kg) 2.0±10%mV/V (1~10kg) |
Zero balance |
±2% F.S. |
Non-linearity |
0.02% F.S. |
Hysteresis |
0.02% F.S. |
Repeatability |
0.02% F.S. |
Creep (30min) |
0.02% F.S. |
Temp. effect on output |
0.025% F.S. / 10ºC |
Temp. effect on zero |
0.025% F.S. / 10ºC |
Input impedance |
410±10Ω |
Output impedance |
350±5Ω |
Insulation |
≥5000MΩ/ 100VDC |
Recommended excitation |
10V |
Maximum excitation |
15V |
Compensated temp. range |
- 10~40ºC |
Operation temp. range |
- 20~60ºC |
Safe overload |
150% F.S. |
Ultimate overload |
200% F.S. |
Cable size |
Ø3×450 mm |
Platform size | 200×200mm |
Protection class |
IP65 |
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
