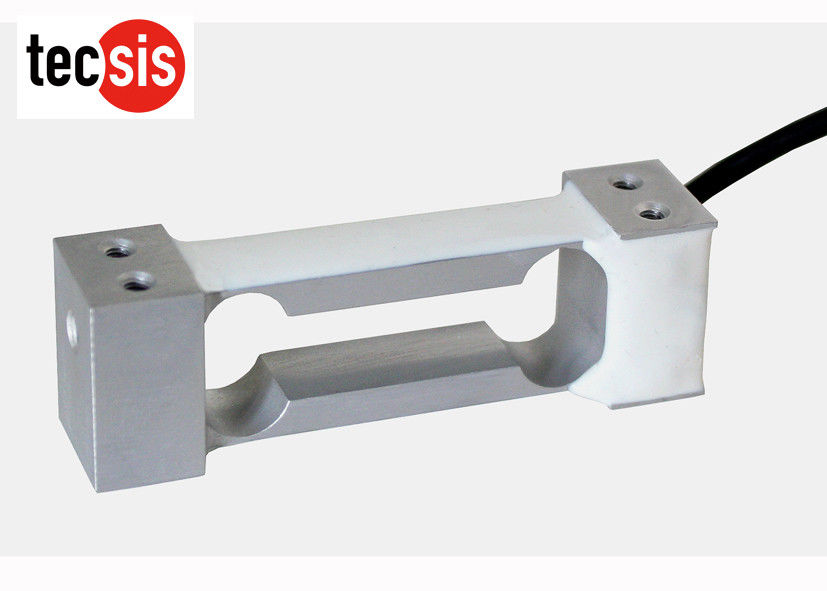

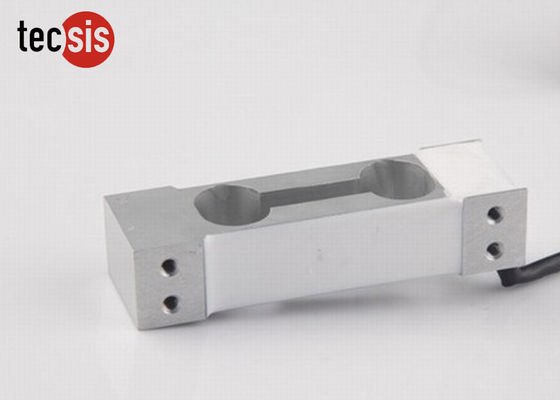

Heavy Duty Industrial Single Point Beam Load Cell Sensor Of Aluminum Alloy

China Heavy Duty Industrial Single Point Beam Load Cell Sensor Of Aluminum Alloy supplier
Heavy Duty Industrial Single Point Beam Load Cell Sensor Of Aluminum Alloy supplier Heavy Duty Industrial Single Point Beam Load Cell Sensor Of Aluminum Alloy supplier

Large Image :  Heavy Duty Industrial Single Point Beam Load Cell Sensor Of Aluminum Alloy

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F4802

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F4802 Type: Single Point Load Cell
Material: Aluminum Alloy Customized: Acceptable
Capacity: 0.3kg~10kg OEM/ODM: Acceptable
Protection Class: IP65 Usage: Weighing System
High Light:

weighing scale load cell

,

high precision load cell

Heavy Duty Industrial Single Point Beam Load Cell Sensor Of Aluminum Alloy





Features :

  • Model:F4802
  • Capacity: 0.3kg~10kg
  • Simple structure, easy to install
  • Small size with profile
  • High comprehensive precision, high stability
  • Made of aluminum alloy
  • Delicate structure



Description:



F4802 load cell is available in the capacities 0.3kg to 10kg. It is suitable for small devices.



The accuracy is very high.



It comes with complete 450mm cable.



It is 70mm long.



F4802 is a kind of Single Point Load Cell, It is made of aluminum alloy, and its surface must be anodized.



The protection level reaches to IP65, which provide excellent protection against moisture ingression.



Its structure is very compact, very light, small size with profile, and easy to install, has the function of high stability.



Recommended platform size is 200mm×200mm.



F4802 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Application:



F4802 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Technical parameters:



Specifications

Technique

Rated output

1.0±10%mV/V (0.3~0.5kg)

2.0±10%mV/V (1~10kg)

Zero balance

±2% F.S.

Non-linearity

0.02% F.S.

Hysteresis

0.02% F.S.

Repeatability

0.02% F.S.

Creep (30min)

0.02% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

410±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~60ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø3×450 mm

Platform size 200×200mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

































































Size and capacity:

Heavy Duty Industrial Single Point Beam Load Cell Sensor Of Aluminum Alloy



Load Direction:



Heavy Duty Industrial Single Point Beam Load Cell Sensor Of Aluminum Alloy





Schematic Wiring Diagram :



Heavy Duty Industrial Single Point Beam Load Cell Sensor Of Aluminum Alloy
