High Capacity Compression Lode Cell Sensor Reaction Force Sensor
Features :
- Model:F9801
- Capacity: 1~150NM
- Simple structure, easy to install
- High comprehensive precision, high stability
- Made of Aluminum alloy
- Delicate structure
- Static torqie sensor
Description:
Static torque sensor with metal foil strain gauge technology and compact structure.

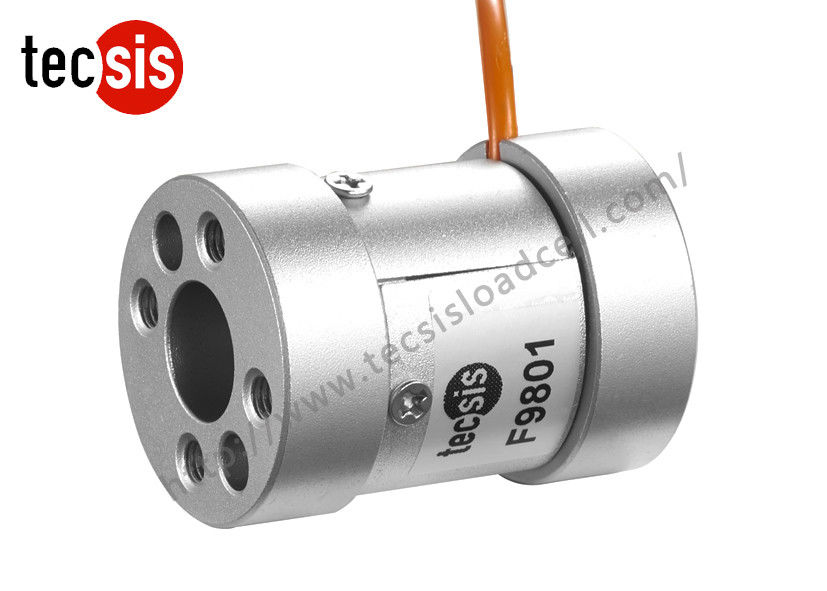

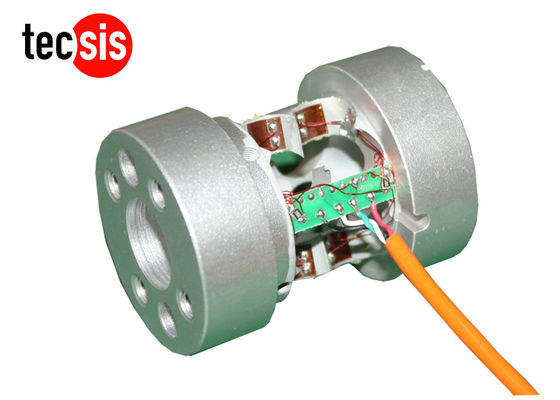

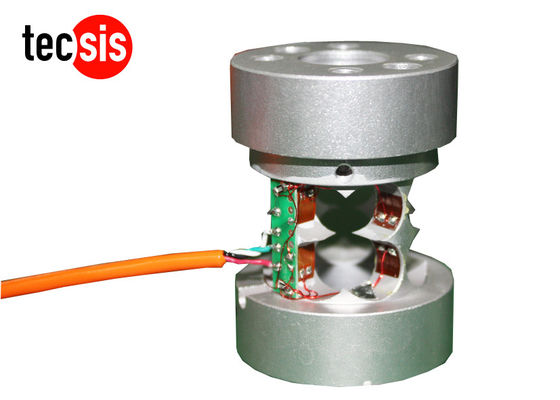

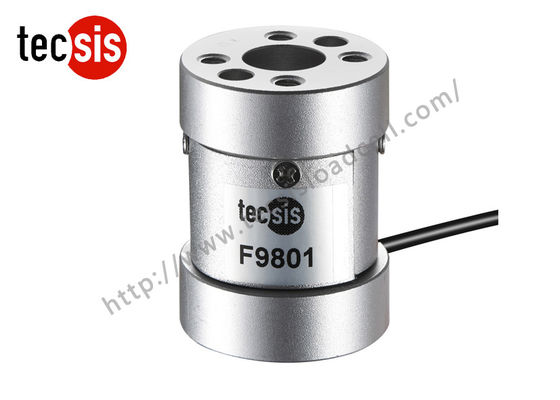

Made of aluminum alloy, there are six holes on both sidez of the load cell, this makes it easy to install, and it will be more stable to measure the torque force.
Mainly used for static, non-continuous rotational torque force measurement.
Application:
Mainly used for static, non-continuous rotational torque force measurement.
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
2.0±10%mV/V |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
0.5% F.S. |
|
Hysteresis |
0.25% F.S. |
|
Repeatability |
0.1% F.S. |
|
Creep (30min) |
0.5% F.S. |
|
Temp. effect on output |
0.05% F.S. / 10ºC |
|
Temp. effect on zero |
0.05% F.S. / 10ºC |
|
Input impedance |
410±10Ω |
|
Output impedance |
350±5Ω |
|
Insulation |
≥5000MΩ/ 100VDC |
|
Recommended excitation |
10V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~60ºC |
|
Operation temp. range |
- 20~80ºC |
|
Safe overload |
120% F.S. |
|
Ultimate overload |
150% F.S. |
|
Cable size |
Ø3×3000mm |
|
Protection class |
IP65 |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
