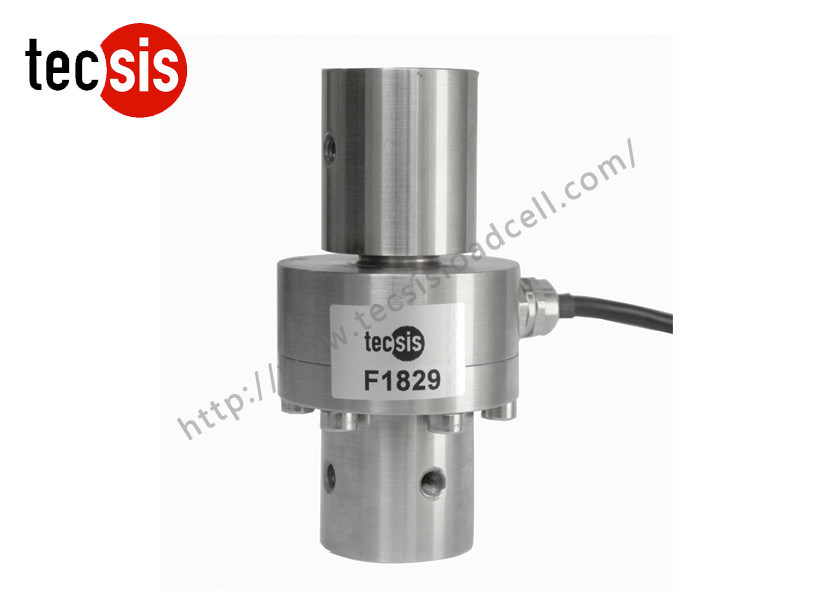

Product Name: F1829 Compression Load Sensor Repeatability: 0.1%F.S.
Material: Stainless Steel Or Alloy Steel Customized: Acceptable
Capacity: 30KN / 50KN OEM/ODM: Acceptable
Protection Class: IP65 Usage: Force Measurement
High Light:

capacitive load cell

,

compression type load cell

High Accuracy Revere Transducer Load Cell Compression Of Alloy Steel





Features :

  • Model:F1829
  • Capacity: 30KN / 50KN
  • High comprehensive precision, high stability
  • Made of stainless steel or alloy steel
  • Small deflection
  • Delicate structure
  • Good ultimate overload
  • Compression load cell



Description:



F1829 is designed for press fitting equipment.



lts capacities 30KN & 50KN and it comes complete with 3m of load cell cable.



 The height is 108mm, the diameter is 55mm. it is suitable for many applications.



It has a strong stability.



Stainless steel or alloy steel construction.



There are holes on the both sizes of the load cell, this makes it easy to be install.





Application:



F1829 is mainly used for press machines and press fitting equipment, can be designed according to the actual press machine.





Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

≤1% F.S.

Hysteresis

0.1% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

385±30Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 50VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5×3000 mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:



High Accuracy Revere Transducer Load Cell Compression Of Alloy Steel



Load direction:

High Accuracy Revere Transducer Load Cell Compression Of Alloy Steel



Schematic Wiring Diagram :



High Accuracy Revere Transducer Load Cell Compression Of Alloy Steel

Product details:

High Accuracy Revere Transducer Load Cell Compression Of Alloy Steel
