Waterproof Stainless Steel Load Cell

China Waterproof Stainless Steel Load Cell supplier

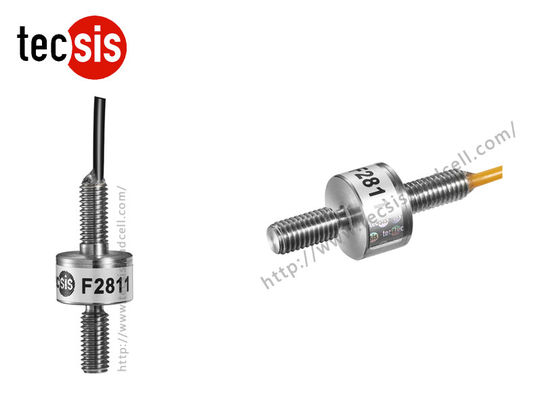

Large Image :  Waterproof Stainless Steel Load Cell

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F2811

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F2811 Tension And Compression Load Cell Structure: Compact
Material: Stainless Steel Customized: Acceptable
Capacity: 10kg~500kg OEM/ODM: Acceptable
Theory: Resistance Sensor

Micro Waterproof Stainless Steel Load Cell





Features :

  • Model:F2811
  • Small size, easy to use
  • Made of stainless steel
  • Capacity:10kg~500kg
  • Diameter:13mm
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Simple structure, easy to install



Description:



F2811 Force transducer is available in the capacities 10kg to 500kg.



Its structure is very delicate, the diameter is 13mm, the height is 33mm, this makes it easy to mount.



There are threads on both sides, so it is to install.



The protection class of F2811 is IP66, which has the function of waterproof and moisture-proof, so it is available for the humid environment.



It is made of stainless steel, good appearance.



F2811 Force transducer can be used single, it can be used for the small space or limited environment (if the output is rationalized). single load cell can be matched with weighing indicator, converting what you want to.



As a force transducer, it is suitable for a wide range of applications including testing or weighing systems, for example, the weighing systems of material testing machines and Dynamometers.



Used for key and elasticity test of Computers,mobiles etc.


Other measuring devices which need undemanding precision requirements.


Suitable for underwater small scale force measurement.





Applications:



Used for key and elasticity test of Computers,mobiles etc. Other measuring devices which need undemanding precision requirements. Suitable for underwater small scale force measurement.



Technical parameters:



Specifications

Technique

Rated output

1.0±20%mV/V

Zero balance

±5% F.S.

Non-linearity

1% F.S.

Hysteresis

0.5% F.S.

Repeatability

0.5% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

350±30Ω

Output impedance

350±5Ω

Insulation

≥2000MΩ

Recommended excitation

5~10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

200% F.S.

Cable size

1500 mm

Protection class

IP66

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:



Waterproof Stainless Steel Load Cell



Schematic Wiring Diagram :



Waterproof Stainless Steel Load Cell



Waterproof Stainless Steel Load Cell
