Compression Truck Scale Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | F1804 Compression Load Cell | Cable: | M12*1-5P |
|---|---|---|---|
| Material: | Alloy Steel | Customized: | Acceptable |
| Capacity: | 5~50t | OEM/ODM: | Acceptable |
| Protection Class: | IP67 | Type: | Column |
Column Compression Truck Scale Load Cell
Features :

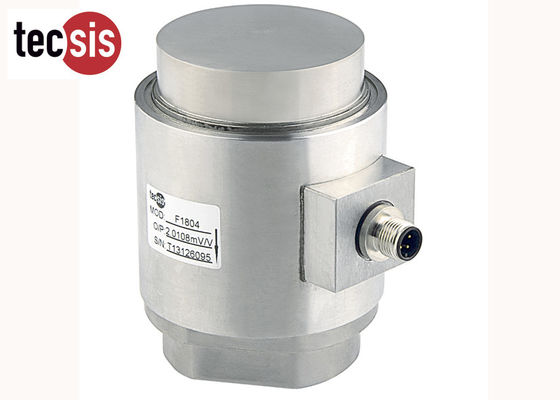

- Model:F1804
- Daul spherical surface
- Strong stability
- Easy to install
- Alloy steel
- laser-welded
- Up to 50t
applications:
F1804 load cells are available in the capacities from 10t to 100t. Stainless steel construction with Column type,automatic recovery. Fully seal welding ,silicon adhesive sealed inside,waterproof, grease proofing,anti-corrosion and suitable for all kinds of environment. Column type structure design.Tension and/or compression loading and easy installation. Suitable for truck scale, railway scale and other electronic weighing devices.
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
2.0±1%mV/V 3.0±1%mV/V (Option) |
|
Zero balance |
±1% F.S. |
|
Non-linearity |
0.05% F.S. |
|
Hysteresis |
0.05% F.S. |
|
Repeatability |
0.05% F.S. |
|
Creep (30min) |
0.05% F.S. |
|
Temp. effect on output |
0.03% F.S. / 10ºC |
|
Temp. effect on zero |
0.03% F.S. / 10ºC |
|
Input impedance |
385±10Ω |
|
Output impedance |
350±5Ω |
|
Insulation |
≥5000MΩ/ 100VDC |
|
Recommended excitation |
10V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~60ºC |
|
Operation temp. range |
- 20~80ºC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
200% F.S. |
|
Cable size |
M12*1-5P |
|
Protection class |
IP67 |
|
Cable color code |
|
Size and capacity:
Schematic Wiring Diagram :
