Waterproof Load Cell Amplifier

China Waterproof Load Cell Amplifier supplier

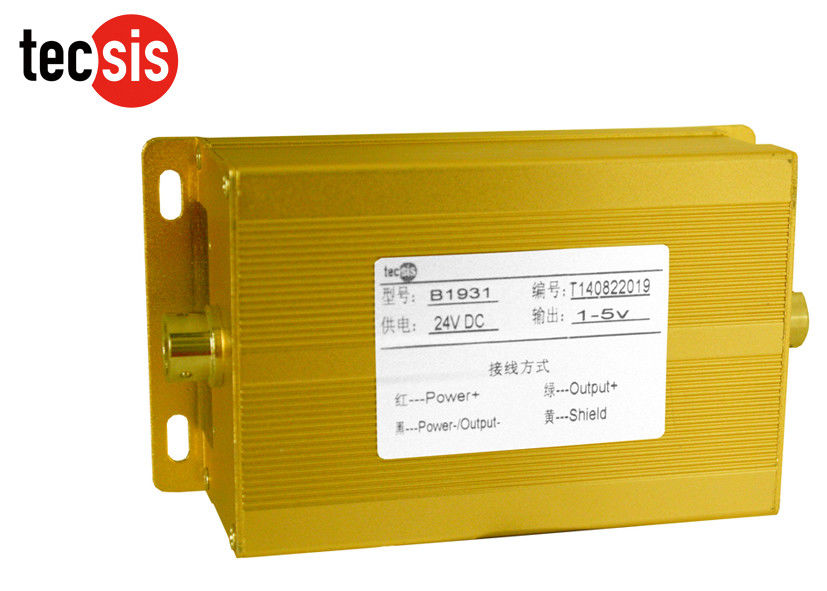

Large Image :  Waterproof Load Cell Amplifier

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: B1931

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: B1931 Structure: Compact
Material: Aluminum Alloy Housing Customized: Acceptable
Signal Input: 0.3~3mV/V OEM/ODM: Acceptable
Protection Class: IP65 Accuracy: 0.1%

Waterproof Load Cell Amplifier



Features :

  • Model:B1931
  • Load cell amplifier
  • Aluminum alloy housing



Description:



Amplifier with aluminum alloy housing. The 5 pin connector is used for connecting a weighing sensor, a 4 pin connector is used for the power and signal output.
Transfer millivolt signal into voltage or current signal.  Mainly used for 0.3-3.0mV/ V rated output type load cell.





Technical parameters:



Specifications

Technique

Signal Input 0.3~3.0 mV / V
Current output 0~20mA
4~20mA ( Option)

Voltage output

0/0.5/1.0~4.5/5.0/10.0VDC

Operation temperature

-20~70ºC, ≤90%RH

Deposited temperature

-40~75ºC, ≤95%RH

Accuracy

0.1%

Power supply

24VDC±10%

Protection class

IP65

Weight

0.3kg































Size and capacity:



Waterproof Load Cell Amplifier
