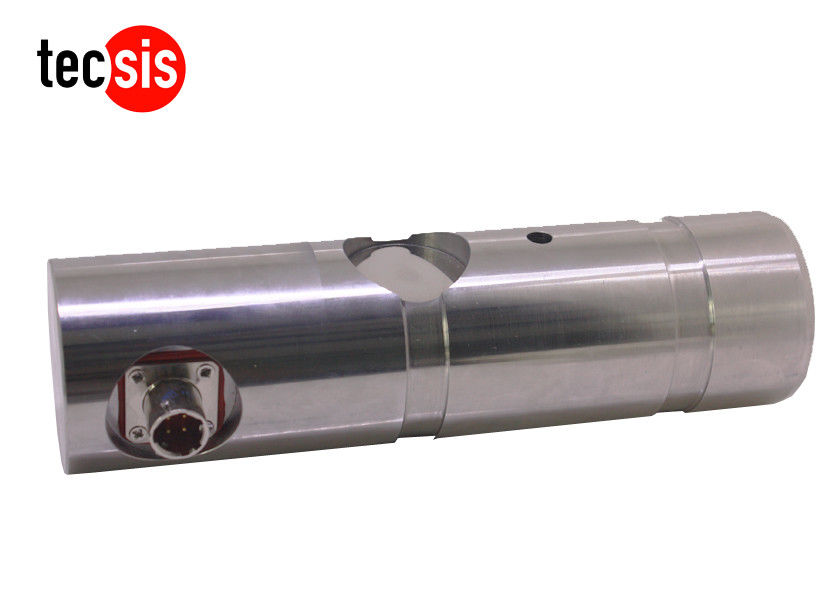

Load Pin Stainless Steel Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | F5802 | Type: | Load Pin |
|---|---|---|---|
| Material: | Stainless Steel | Customized: | Acceptable |
| Capacity: | 50KN | OEM/ODM: | Acceptable |
| Protection Class: | IP67 | Usage: | Crane Industry |
Custom Torque Load Pin Stainless Steel Load Cell
Features :
- Model:F5802
- Capacity: 50KN
- High comprehensive precision, high stability
- Made of stainless steel
- Delicate structure
- Simple structure, easy to install
Description:
Stainless steel material, high strength, good load tolerance, suitable for severe environment.
Temperature compensation technique ensures the high accuracy in different environment.
Custom design to meet different applications. Well sealed for most industrial environments.
Used as replacement for exiting shafts.
The protection class is IP67, it can be used in harsh environment.
Used for crane load monitoring; Hydraulic cylinder force measuring; Anti-tilting at forklift trucks; Tool monitoring for CNC machines; Load measuring and monitoring at sailing boat; Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.
Application:
Crane load monitoring; Hydraulic cylinder force measuring;
Anti-tilting at forklift trucks;
Tool monitoring for CNC machines;
Load measuring and monitoring at sailing boat
Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
1.0±5%mV/V |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
0.5% F.S. |
|
Hysteresis |
0.2% F.S. |
|
Repeatability |
0.2% F.S. |
|
Creep (30min) |
0.05% F.S. |
|
Temp. effect on output |
0.05% F.S. / 10ºC |
|
Temp. effect on zero |
0.05% F.S. / 10ºC |
|
Input impedance |
750±30Ω |
|
Output impedance |
700±5Ω |
|
Insulation |
≥5000MΩ/ 100VDC |
|
Recommended excitation |
10V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~60ºC |
|
Operation temp. range |
- 20~80ºC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
300% F.S. |
|
Cable size |
M12*1-4P |
|
Protection class |
IP67 |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
