Product Name: F2801 S-Type Load Cell Application: Measurement In Hopper Scale
Material: Aluminum Alloy Customized: Acceptable
Capacity: 5~200kg OEM/ODM: Acceptable
Protection Class: IP65 Theory: Resistance Sensor
High Light:

industrial load cell

,

tension link load cell

Miniature Tension Compression Load Cell





Features :

  • Model:F2801
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Simple structure, easy to install
  • Made of aluminum alloy
  • Capacity:5~200kg



Descriptions:

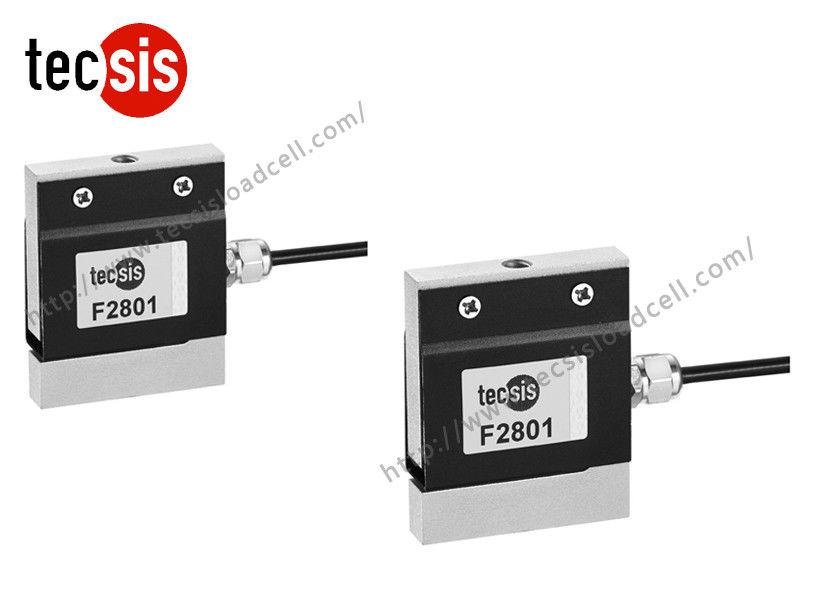

F2801 is a S-beam load cell, it also called S-type load cell.



It can measure tension and compression force.



As it is made of aluminum alloy, the capacity is 5kg to 200kg.



It has a high accuracy.



There is a hole on both sides, this makes it easy to install.



It comes complete 1.5m cable and the cable out let is pressing nut.



S-beam designing can be installed easily, which be available for crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.



This kind can be used single, and be used two or more sets together, but they must be connected with Rod Ends Spherical Plain bearings or connecting rod, which is beneficial for weighing device in the way of hoisting equipment.





Applications:



S-beam designing can be installed easily, which be available for crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.





Technical parameters:



Specifications

Technique

Rated output

2.0±5%mV/V

Zero balance

±2% F.S.

Non-linearity

0.03% F.S.

Hysteresis

0.03% F.S.

Repeatability

0.02% F.S.

Creep (30min)

0.03% F.S.

Temp. effect on output

0.03% F.S. / 10ºC

Temp. effect on zero

0.03% F.S. / 10ºC

Input impedance

410±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

1500 mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);































































Size and capacity:



Miniature Tension Compression Load Cell



Schematic Wiring Diagram :



Miniature Tension Compression Load Cell
