Detailed Product Description

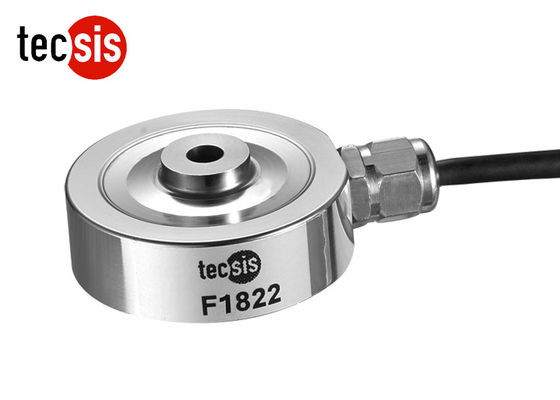

Product Name: F1822 Small Size Compression Load Sensor Height: 16mm
Material: Stainless Steel Customized: Acceptable
Capacity: 0.5KN~25KN OEM/ODM: Acceptable
Protection Class: IP66 Usage: Force Measurement

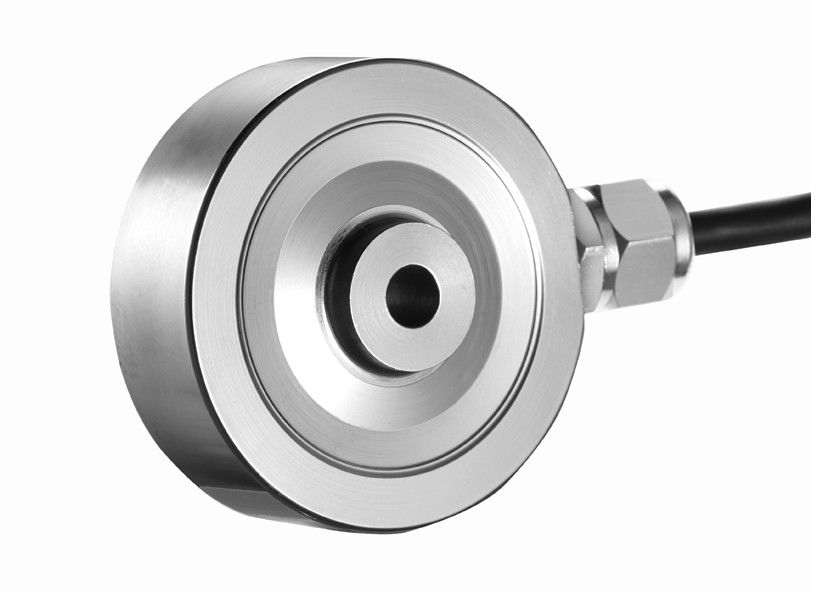

Thru Hole Compression Load Cell High Accuracy Transducer Sensor 0.5KN~25KN





Features :

  • Model:F1822
  • Capacity: 0.5KN~25KN
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of stainless steel
  • Small deflection
  • Compression Load cell
  • Delicate structure, Low profile



Description:

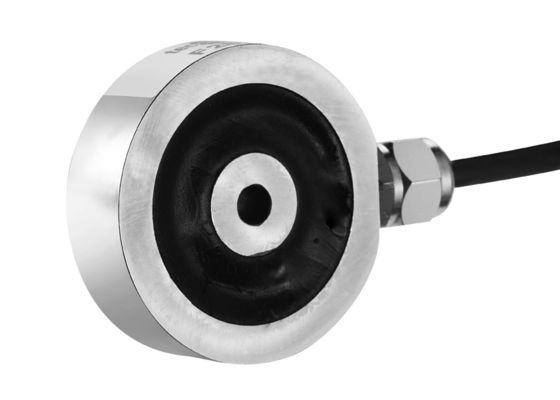

F1822 is designed for low profile compression service.



There is a hole in the middle of the load cell, this makes it easy to install.



lts compact size makes the cell ideal for a wide range of applications including testing & weighing systems , R&D and other applications .



lts capacities range from 0.5KN to 25KN and it comes complete with 1.5m of load cell cable.



Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications. Compact size with low profile.



The protection class is IP 66.





Application:



F1822 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Widely used for industrial measurement and control, R&D and other applications.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.3% F.S.

Repeatability

0.2% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

380±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

Ø4×3000 mm

Protection class

IP66

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



























































Size and capacity:



Thru Hole Compression Load Cell High Accuracy Transducer Sensor 0.5KN~25KN



Load Direction:



Thru Hole Compression Load Cell High Accuracy Transducer Sensor 0.5KN~25KN





Schematic Wiring Diagram :



Thru Hole Compression Load Cell High Accuracy Transducer Sensor 0.5KN~25KN



Product Details:



Thru Hole Compression Load Cell High Accuracy Transducer Sensor 0.5KN~25KN

Thru Hole Compression Load Cell High Accuracy Transducer Sensor 0.5KN~25KN

Thru Hole Compression Load Cell High Accuracy Transducer Sensor 0.5KN~25KN

Thru Hole Compression Load Cell High Accuracy Transducer Sensor 0.5KN~25KN

Thru Hole Compression Load Cell High Accuracy Transducer Sensor 0.5KN~25KN
