Washer Type Stainless Steel Load Cell Compression Load Cell 0.3t To 45t
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | F6804 Compression Load Cell | Rated Output: | 1.0±10%mV/V |
|---|---|---|---|
| Material: | Stainless Steel | Customized: | Acceptable |
| Capacity: | 0.3t~45t | OEM/ODM: | Acceptable |
| Protection Class: | IP65 | Usage: | Force Measurement |
Washer Type Stainless Steel Load Cell Compression Load Cell 0.3t To 45t
Features :
- Model:F6804
- Capacity: 0.3t~45t
- High comprehensive precision, high stability
- Made of stainless steel
- Small deflection
- Delicate structure
Description:

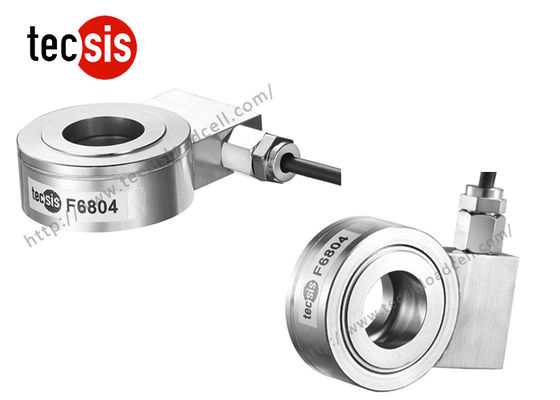

F6804 is washer type load cell, the outer diameter is 34~95mm and the inter diameter is 16~50mm. The height is 15~50mm.
It is used for loop force measurement, Bolt tension measurement., Extrusion force test, Assemble pressure test and other pressure test.
It is made of stainless steel and the compact struct makes it has a good ultimate overload.
Application:
Donut load cells are specially designed for press-in force measurement in applications like bolt installation, polishing force monitoring, etc.
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
1.0±10%mV/V |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
≤2% F.S. |
|
Hysteresis |
1% F.S. |
|
Repeatability |
0.5% F.S. |
|
Creep (30min) |
0.5% F.S. |
|
Temp. effect on output |
0.05% F.S. / 10ºC |
|
Temp. effect on zero |
0.05% F.S. / 10ºC |
|
Input impedance |
385±30Ω |
|
Output impedance |
350±5Ω |
|
Insulation |
≥5000MΩ/ 100VDC |
|
Recommended excitation |
5V |
|
Maximum excitation |
10V |
|
Compensated temp. range |
- 10~60ºC |
|
Operation temp. range |
- 20~80ºC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
200% F.S. |
|
Cable size |
Ø3×3000 mm |
|
Protection class |
IP65 |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Load Direction:
Schematic Wiring Diagram :
