Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F9852

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F9852 Type: Square
Material: Stainless Steel Customized: Acceptable
Capacity: 50kg OEM/ODM: Acceptable
Protection Class: IP65 Usage: Three Dimensional Force

Customized Three Dimensional Force Multi Axis Load Cell Sensor Square Type



Features :

  • Model:F9852
  • Capacity: 50kg
  • Rugged structure
  • High comprehensive precision, high stability
  • Made of Aluminum alloy
  • Delicate structure
  • Three dimensional force sensor



Description:



F9852 is a Three dimensional force sensor. Made of anodized aluminum alloy, compact structure. This load cell is with metal foil strain gauge technology, overload protection on robot heads, it is suitable for automation tools, used for test rigs.

It is  very small can be used in many limited spaces.

Small interface among  three diamensions.

There are holes on the body , this makes it  easy to install and replace.

It is with strain gauge technology and with high accuracy.

Shape and size customized.





Application:



 It is suitable for robot arm control and as protection for automation equipments.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Total error

0.5% F.S.

Temp. effect on output

0.5% F.S. / 10ºC

Temp. effect on zero

0.5% F.S. / 10ºC

Output impedance

350±5Ω

Recommended excitation

5~10V

Maximum excitation

15V

Operation temp. range

- 20~60ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø2.8×3000mm

Protection class

IP65

Cable color code

Power: Exc+(Red)      Exc-(Black);

Fx:        Sig+(Green)   Sig-(White);

Fy:        Sig+(Blue)      Sig-(Yellow);

Fz:        Sig+(Brown)   Sig-(Grey);

























































Size and capacity:

Customized Three Dimensional Force Multi Axis Load Cell Sensor Square Type



Load Direction:



Customized Three Dimensional Force Multi Axis Load Cell Sensor Square Type

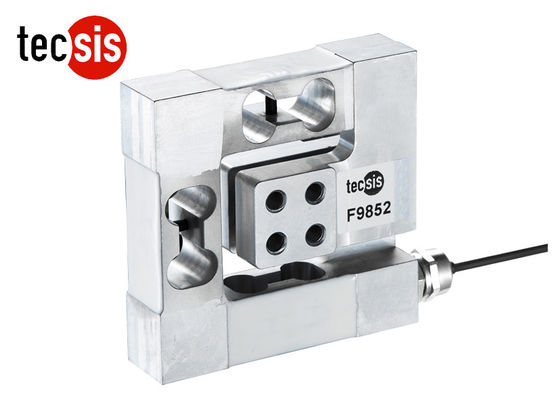

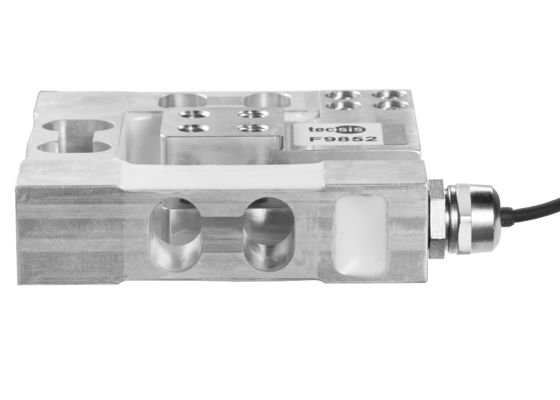

Product Details :



Customized Three Dimensional Force Multi Axis Load Cell Sensor Square TypeCustomized Three Dimensional Force Multi Axis Load Cell Sensor Square Type

Customized Three Dimensional Force Multi Axis Load Cell Sensor Square TypeCustomized Three Dimensional Force Multi Axis Load Cell Sensor Square TypeCustomized Three Dimensional Force Multi Axis Load Cell Sensor Square TypeCustomized Three Dimensional Force Multi Axis Load Cell Sensor Square TypeCustomized Three Dimensional Force Multi Axis Load Cell Sensor Square Type
