Small Wireless Torque Multi Axis Load Cell Strain Gauge For Testing

China Small Wireless Torque Multi Axis Load Cell Strain Gauge For Testing supplier

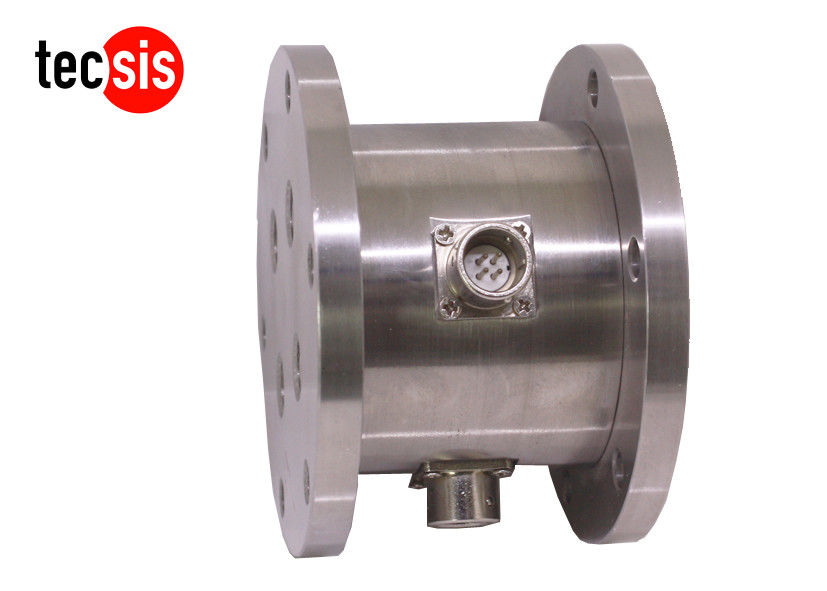

Large Image :  Small Wireless Torque Multi Axis Load Cell Strain Gauge For Testing

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F9804

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F9804 Type: Column
Material: Stainless Steel Customized: Acceptable
Capacity: 1000kg OEM/ODM: Acceptable
Protection Class: IP65 Usage: Three Dimensional Force
High Light:

3 axis load cell

,

axial load cell

Small Wireless Torque Multi Axis Load Cell Strain Gauge For Testing





Features :

  • Model:F9804
  • Capacity: 20kg~1t
  • Three dimensional force sensor
  • Made of stainless steel
  • Rugged structure
  •  IP65 protection
  • With metal foil strain gauge technology
  • Overload protection on robot heads
  •  Automation tools, used for test rigs



Description:



F9804 is a Three dimensional force sensor. It is made of stainless steel, rugged structure. This load cell is with metal foil strain gauge technology, overload protection on robot heads, it is suitable for automation tools, used for test rigs.





Application:



 It is suitable for automation tools, used for test rigs.





Technical parameters:



Specifications

Technique

Rated output

1.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.25% F.S.

Repeatability

0.25% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

385±30Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

200% F.S.

Cable size

3×Ø3×1500mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

























































Size and capacity:



Small Wireless Torque Multi Axis Load Cell Strain Gauge For Testing





Schematic Wiring Diagram :



Small Wireless Torque Multi Axis Load Cell Strain Gauge For Testing
