Two Dimensional Waterproof Load Cell 50kg With Stainless Steel Sensor

China Two Dimensional Waterproof Load Cell 50kg With Stainless Steel Sensor supplier

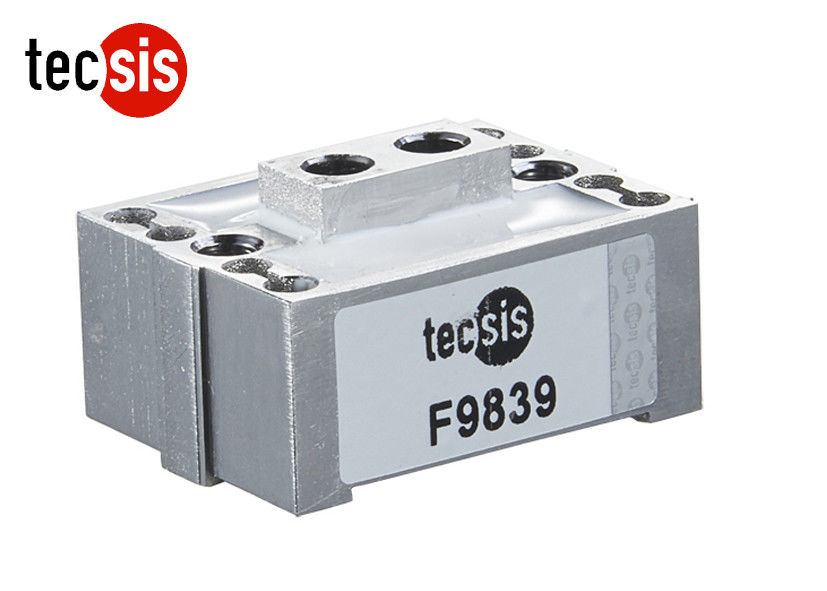

Large Image :  Two Dimensional Waterproof Load Cell 50kg With Stainless Steel Sensor

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F9839

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F9839 Type: Square
Material: Stainless Steel Customized: Acceptable
Capacity: 50kg OEM/ODM: Acceptable
Protection Class: IP65 Usage: Two Dimensional Force

Two Dimensional Waterproof Load Cell 50kg With Stainless Steel Sensor



Features :

  • Model:F9839
  • Capacity: 50kg
  • Rugged structure
  • High comprehensive precision, high stability
  • Made of Stainless steel
  • Delicate structure
  • Two dimensional force sensor



Description:



F9839 is a Two dimensional force sensor. It is made of stainless steel, compact structure. This load cell is with metal foil strain gauge technology, overload protection on robot heads, it is suitable for automation tools, used for test rigs.

It is  very small can be used in many limited spaces.

Small interface among  two diamensions.

There are holes on the body , this makes it  easy to install and replace.

It is with strain gauge technology and with high accuracy.

Shape and size customized.





Application:



 It is suitable for robot arm control and as protection for automation equipments.





Technical parameters:



Specifications

Technique

Rated output

1.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Total error

0.5% F.S.

Temp. effect on output

0.2% F.S. / 10ºC

Temp. effect on zero

0.2% F.S. / 10ºC

Output impedance

352±3Ω

Recommended excitation

5~10V

Maximum excitation

15V

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

Ø2.4×3000mm

Protection class

IP65

Cable color code

Power: Exc+(Red)      Exc-(Black);

Fx:        Sig+(Green)   Sig-(White);

Fy:        Sig+(Yellow)      Sig-(Brown);

























































Size and capacity:

Two Dimensional Waterproof Load Cell 50kg With Stainless Steel Sensor



Load Direction:



Two Dimensional Waterproof Load Cell 50kg With Stainless Steel Sensor





Product Details :



Two Dimensional Waterproof Load Cell 50kg With Stainless Steel Sensor

Two Dimensional Waterproof Load Cell 50kg With Stainless Steel SensorTwo Dimensional Waterproof Load Cell 50kg With Stainless Steel SensorTwo Dimensional Waterproof Load Cell 50kg With Stainless Steel SensorTwo Dimensional Waterproof Load Cell 50kg With Stainless Steel SensorTwo Dimensional Waterproof Load Cell 50kg With Stainless Steel Sensor
