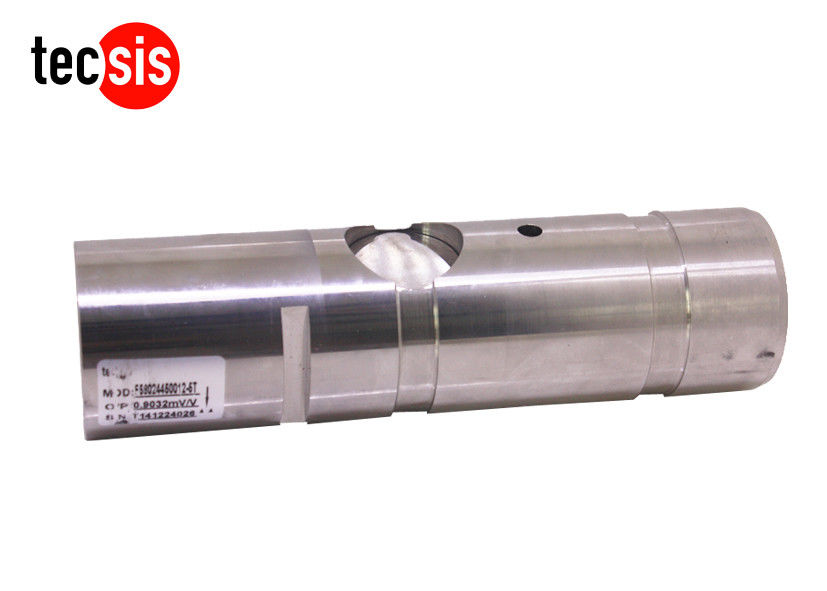

Product Name: F5802 Type: Load Pin
Material: Stainless Steel Customized: Acceptable
Capacity: 50KN OEM/ODM: Acceptable
Protection Class: IP67 Usage: Crane Industry

Waterproof Strain Gauge Load Pin Load Cells IP67 Of Stainless Steel





Features :

  • Model:F5802
  • Capacity: 50KN
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of stainless steel
  • Delicate structure



Description:



Temperature compensation technique ensures the high accuracy in different environment.
Stainless steel material, high strength, good load tolerance, suitable for severe environment.
Custom design to meet different applications. Well sealed for most industrial environments.
Used as replacement for exiting shafts.
The protection class is IP67, it can be used in harsh environment.
Used for crane load monitoring; Hydraulic cylinder force measuring; Anti-tilting at forklift trucks; Tool monitoring for CNC machines; Load measuring and monitoring at sailing boat; Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.



Application:



Crane load monitoring; Hydraulic cylinder force measuring;

Anti-tilting at forklift trucks;

Tool monitoring for CNC machines;

Load measuring and monitoring at sailing boat

Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.





Technical parameters:



Specifications

Technique

Rated output

1.0±5%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.2% F.S.

Repeatability

0.2% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

750±30Ω

Output impedance

700±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

300% F.S.

Cable size

M12*1-4P

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);































































Size and capacity:



Waterproof Strain Gauge Load Pin Load Cells IP67 Of Stainless Steel





Schematic Wiring Diagram :



Waterproof Strain Gauge Load Pin Load Cells IP67 Of Stainless Steel

Waterproof Strain Gauge Load Pin Load Cells IP67 Of Stainless Steel
