Custom Torque Load Pin Stainless Steel Load Cell Testing For Elevator / Crane

China Custom Torque Load Pin Stainless Steel Load Cell Testing For Elevator / Crane supplier

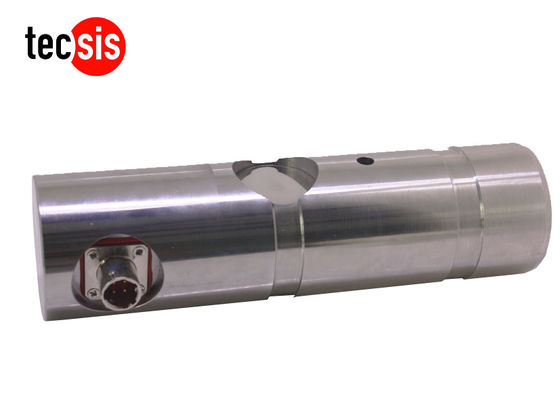

Large Image :  Custom Torque Load Pin Stainless Steel Load Cell Testing For Elevator / Crane

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F5802

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F5802 Type: Load Pin
Material: Stainless Steel Customized: Acceptable
Capacity: 50KN OEM/ODM: Acceptable
Protection Class: IP67 Usage: Crane Industry

Custom Torque Load Pin Stainless Steel Load Cell Testing For Elevator / Crane





Features :

  • Model:F5802
  • Capacity: 50KN
  • High comprehensive precision, high stability
  • Made of stainless steel
  • Delicate structure
  • Simple structure, easy to install



Description:



Stainless steel material, high strength, good load tolerance, suitable for severe environment.



Temperature compensation technique ensures the high accuracy in different environment.



Custom design to meet different applications. Well sealed for most industrial environments.



Used as replacement for exiting shafts.



The protection class is IP67, it can be used in harsh environment.



Used for crane load monitoring; Hydraulic cylinder force measuring; Anti-tilting at forklift trucks; Tool monitoring for CNC machines; Load measuring and monitoring at sailing boat; Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.





Application:



Crane load monitoring; Hydraulic cylinder force measuring;

Anti-tilting at forklift trucks;

Tool monitoring for CNC machines;

Load measuring and monitoring at sailing boat

Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.





Technical parameters:



Specifications

Technique

Rated output

1.0±5%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.2% F.S.

Repeatability

0.2% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

750±30Ω

Output impedance

700±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

300% F.S.

Cable size

M12*1-4P

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:



Custom Torque Load Pin Stainless Steel Load Cell Testing For Elevator / Crane





Schematic Wiring Diagram :



Custom Torque Load Pin Stainless Steel Load Cell Testing For Elevator / Crane

Custom Torque Load Pin Stainless Steel Load Cell Testing For Elevator / Crane
