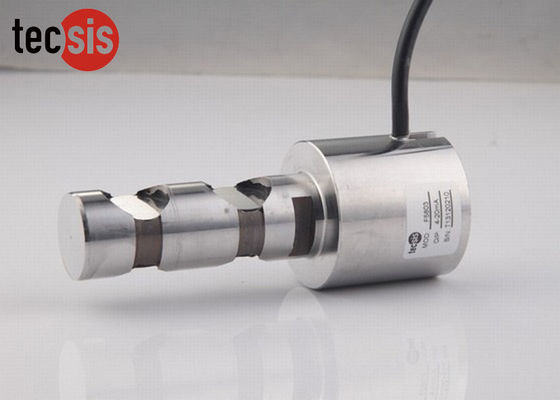

Product Name: F5803 Type: Load Pin
Material: Stainless Steel Customized: Acceptable
Capacity: 0.5t~50t OEM/ODM: Acceptable
Protection Class: IP67 Usage: Crane Industry

Mechanical Capacitive Load Pin Load Cells , Crane Load Cell Transducer





Features :

  • Model:F5803
  • Capacity: 0.5t~50t
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of stainless steel
  • Delicate structure
  • Ultimate overload: 300%



Description:



Temperature compensation technique ensures the high accuracy in different environment.

Stainless steel material, high strength, good load tolerance, suitable for severe environment

Custom design to meet different applications. Well sealed for most industrial environments



Crane load monitoring; Hydraulic cylinder force measuring;

Anti-tilting at forklift trucks;

Tool monitoring for CNC machines;

Load measuring and monitoring at sailing boat

Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.





Application:



Used for ports, terminals and cargo cranes as well as hoist, lifting equipment and safety testing applications.





Technical parameters:



Specifications

Technique

Rated output

1.0±10%mV/V

Zero balance

±1% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.3% F.S.

Repeatability

0.3% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

350±10Ω

780±10Ω (Option)

Output impedance

350±5Ω

700±5Ω (Option)

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

200% F.S.

Ultimate overload

300% F.S.

Cable size

Ø5×2000mm

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:
