Touch Screen Force Display Weighing Scale Indicator Curve Display

China Touch Screen Force Display Weighing Scale Indicator Curve Display supplier

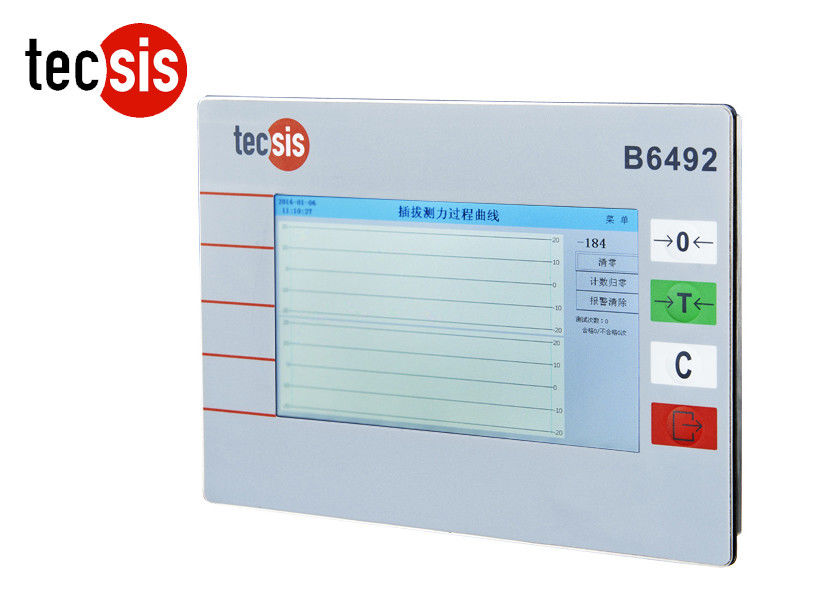

Large Image :  Touch Screen Force Display Weighing Scale Indicator Curve Display

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: B6492

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: B6492 Structure: Compact
Display Type: Touch Screen Customized: Acceptable
Type: Platform Scale Indicator Usage: Weighing Force

Touch Screen Force Display Weighing Scale Indicator Curve Display





Features :



  • Graphic display to slow force over time
  • IP54 protection
  • 7 inches color touch screen,
  • Simple operation
  • Interface in both Chinese and English
  • 8 output
  • Real-time curve display
  • Support database
  • For simple logic control programming, can replace PLC
  • Printer connection

Optional:

  • Optional RS232 and RS485 connection
  • MODBUS RTU communication protocol





Technical parameters:



Specifications

Technique

Power supply 24VDC+/-20%

Maximum power consumption

5W

Digits 7

1 weighing signal input

0~39mV

Excitation voltage output

5VDC

Acquistition frequency

≤4800Hz

Zero drift

±0.1μV/ºC RTI

Gain drift

±5ppm/ºC

Accuracy

0.1% F.S.

Digital input

2DI

Digital output

4DO,

Communication interface RS232 or RS485/Intel networks
Operation temperature range -10ºC~+60ºC
Storage temperature -30ºC~+80ºC
Relative humidity ≤85%RH
Protection class IP54
Weight 1.4kg



















































Size and capacity:



Touch Screen Force Display Weighing Scale Indicator Curve Display
