RS232 Digital Weighing Indicator Manual , Platform Weighing Scale Indicator

China RS232 Digital Weighing Indicator Manual , Platform Weighing Scale Indicator supplier

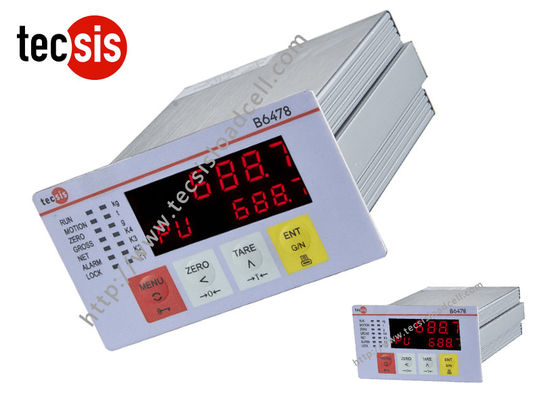

Large Image :  RS232 Digital Weighing Indicator Manual , Platform Weighing Scale Indicator

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: B6478

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Detailed Product Description
Product Name: B6478 Structure: Compact
Display Type: LED Customized: Acceptable
Type: Platform Scale Indicator Usage: Weighing Scale

RS232 Digital Weighing Indicator Manual , Platform Weighing Scale Indicator





Features :

  • Weighing indicator, accumulate manually
  • 6 + 8 red LED digital tube, shows English characters / figures
  • Can be connected to four 350Ω load cells
  • Optional six-way normally open switch digital input and five-way normally open
    relay switch digital output
  • An optional , definable analog signal output
  • Optional RS232 or RS485





Technical parameters:



Specifications

Technique

Accuracy III
Power supply 24VDC±20%

Maximum power consumption

5W

1 weighing signal input

0~22.5mV

Excitation voltage output

9VDC

Maximum sampling frequency

800Hz

Zero drift

±0.1μV/ºC RTI

Gain drift

±5ppm/ºC

Nonlinearity

0.005% F.S.

Digital input

6DI

Digital output

5DO,AC250V / DC24V,1A

Analog input

1AO,4~20mA

Communication interface RS232 or RS485
Operation temperature range -25ºC~+40ºC
Storage temperature -30ºC~+60ºC
Relative humidity ≤85%RH
Protection class IP50
Weight 0.5kg



















































Size and capacity:



RS232 Digital Weighing Indicator Manual , Platform Weighing Scale Indicator



Product Details:

RS232 Digital Weighing Indicator Manual , Platform Weighing Scale Indicator
