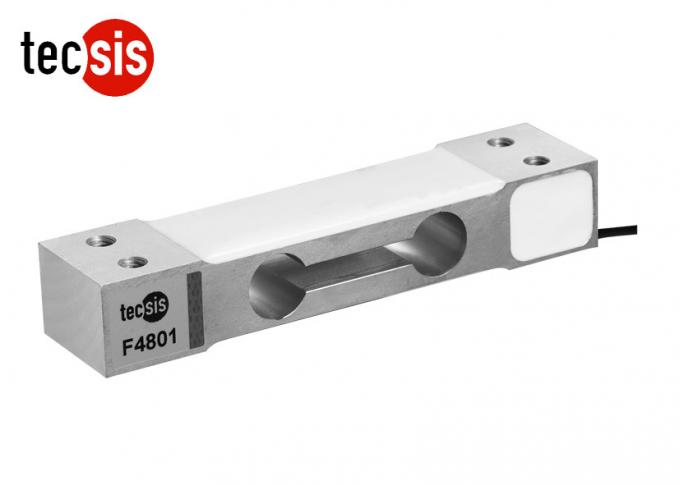

Product Name: F4801 Type: Single Point Load Cell
Material: Aluminum Alloy Customized: Acceptable
Capacity: 3kg~250kg OEM/ODM: Acceptable
Protection Class: IP65 Usage: Weighing System
High Light:

micro load cell

,

load cell scale



High Accuracy Strain Gauge Load Cell Scale Sensor For Weighing System





Features :

  • Model: F4801
  • Capacity: 3kg~250kg
  • Simple structure, easy to install
  • Small size with profile
  • High comprehensive precision, high stability
  • Made of aluminum alloy
  • The four deviation has been adjusted
  • Delicate structure



Description:



F4801 is a kind of Single Point Load Cell, It is made of aluminum alloy, and its surface must be anodized.



The protection level reaches to IP65, which provide excellent protection against moisture ingression.



F4801 load cell is available in the capacities 3kg to 250kg



Its structure is very compact, very light, small size with profile, and easy to install, has the function of high stability.



F4801 is designed for electronic scales and platform scales where only one load cell can be used and low profile is required.



Recommended platform size is 250mm×300mm, the design is most suitable for mass production operations.



F4801 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Application:



F4801 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.02% F.S.

Hysteresis

0.02% F.S.

Repeatability

0.02% F.S.

Creep (30min)

0.02% F.S.

Temp. effect on output

0.02% F.S. / 10ºC

Temp. effect on zero

0.02% F.S. / 10ºC

Input impedance

410±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~60ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø3×450 mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:
