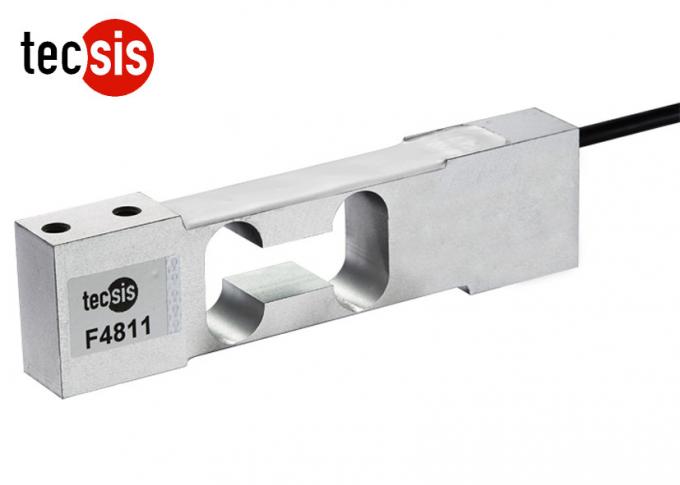

IP65 Aluminum Alloy Load Cell Transducer Micro Load Cells For Scales

: Large Image : IP65 Aluminum Alloy Load Cell Transducer Micro Load Cells For Scales

Product Details:

Place of Origin:	China
Brand Name:	tecsis
Model Number:	F4811

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	Standard: carton
Delivery Time:	Stock product:3~5 working days , No stock:10~35 days
Payment Terms:	L/C, T/T
Supply Ability:	20,000pcs per month

Contact Now

Detailed Product Description

Product Name:	F4811	Type:	Single Point Load Cell
Material:	Aluminum Alloy	Customized:	Acceptable
Capacity:	3kg~100kg	OEM/ODM:	Acceptable
Protection Class:	IP65	Usage:	Weighing System
High Light:	micro load cell , load cells for scales

IP65 Aluminum Alloy Load Cell Transducer Micro Load Cells For Scales

Features :

Model:F4811
Capacity: 3kg~100kg
Made of aluminum alloy
IP65 protection
Delicate structure
Simple structure, easy to install
Small size with profile
High comprehensive precision, high stability
Single point load cell
Strain Gauge Load Cell

Description:

F4811 is a kind of Single Point Load Cell, It is made of aluminum alloy, and its surface must be anodized. The protection level reaches to IP65, which provide excellent protection against moisture ingression.

F4811 load cell is available in the capacities 3kg to 100kg, its structure is very compact, very light, small size with profile, and easy to install, has the function of high stability, F4811 is designed for electronic scales and platform scales where only one load cell can be used and low profile is required. Recommended platform size is 250mm×300mm, the design is most suitable for mass production operations.

F4811can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.

Application:

F4811 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.

Technical parameters:

Specifications	Technique
Rated output	2.0±10%mV/V
Zero balance	±2% F.S.
Non-linearity	0.02% F.S.
Hysteresis	0.02% F.S.
Repeatability	0.02% F.S.
Creep (30min)	0.02% F.S.
Temp. effect on output	0.025% F.S. / 10ºC
Temp. effect on zero	0.025% F.S. / 10ºC
Input impedance	410±10Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/ 100VDC
Recommended excitation	5V
Maximum excitation	10V
Compensated temp. range	- 10~40ºC
Operation temp. range	- 20~60ºC
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Cable size	Ø5×1500 mm
Platform size	250×300mm
Protection class	IP65
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
