Capacitive Six Axis Force Torque Sensor / Force Measurement Sensor

China Capacitive Six Axis Force Torque Sensor / Force Measurement Sensor supplier
Capacitive Six Axis Force Torque Sensor / Force Measurement Sensor supplier Capacitive Six Axis Force Torque Sensor / Force Measurement Sensor supplier

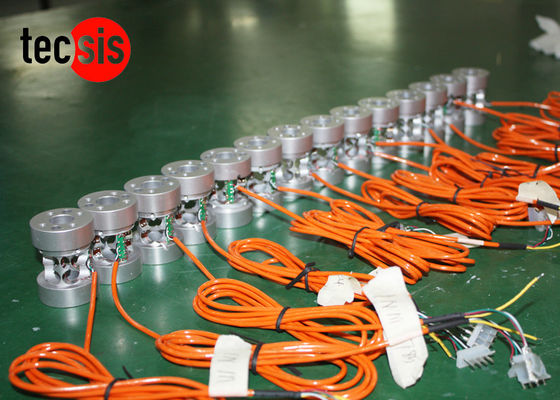

Large Image :  Capacitive Six Axis Force Torque Sensor / Force Measurement Sensor

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F9801

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F9801 Type: Column
Material: Aluminum Alloy Customized: Acceptable
Capacity: 1~150NM OEM/ODM: Acceptable
Protection Class: IP65 Usage: Torque Force Measurement
High Light:

6 axis force torque sensor

,

Static Torque Sensor

Capacitive Six Axis Force Torque Sensor / Force Measurement Sensor





Features :

  • Model:F9801
  • Capacity: 1~150NM
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of Aluminum alloy
  • Delicate structure
  • Static torqie sensor



Description:



Static torque sensor with metal foil strain gauge technology and compact structure.

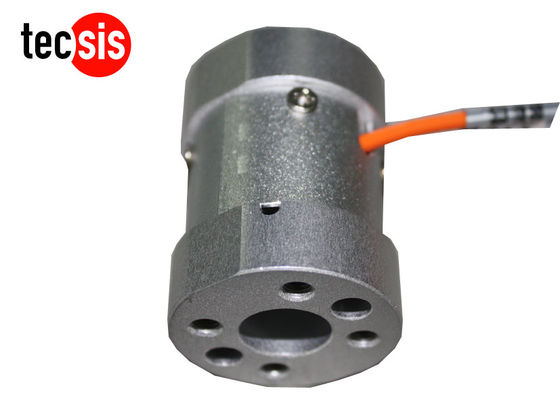

Made of aluminum alloy, there are six holes on both sidez of the load cell, this makes it easy to install, and it will be more stable to measure the torque force.

Mainly used for static, non-continuous rotational torque force measurement.





Application:



Mainly used for static, non-continuous rotational torque force measurement.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.25% F.S.

Hysteresis

0.25% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

410±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

Ø3×1500mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

































































Size and capacity:



Capacitive Six Axis Force Torque Sensor / Force Measurement Sensor





Schematic Wiring Diagram :



Capacitive Six Axis Force Torque Sensor / Force Measurement Sensor

Capacitive Six Axis Force Torque Sensor / Force Measurement Sensor
