Detailed Product Description
Product Name: F9801 Type: Column
Material: Aluminum Alloy Customized: Acceptable
Capacity: 1~150NM OEM/ODM: Acceptable
Protection Class: IP65 Usage: Torque Force Measurement
High Light:

rotary torque sensor

,

Static Torque Sensor

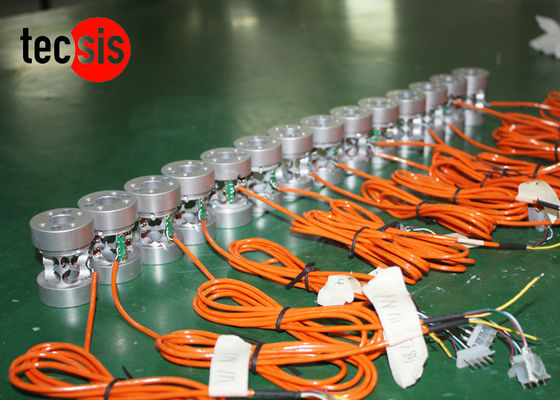

Column Type Rotary Static Torque Sensor Aluminum Load Cell 1Nm To 150Nm





Features :

  • Model:F9801
  • Capacity: 1~150NM
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of Aluminum alloy
  • Delicate structure
  • Static torqie sensor



Description:

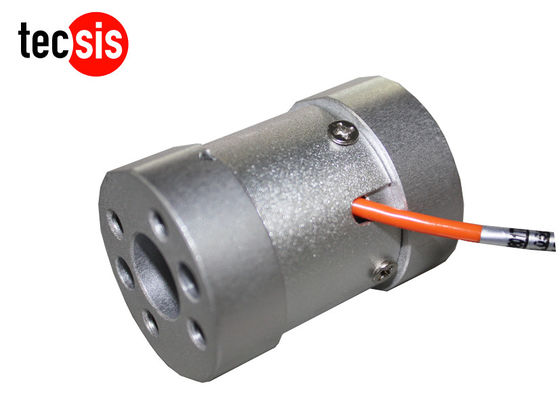

Static torque sensor with metal foil strain gauge technology and compact structure.

Made of aluminum alloy, there are six holes on both sidez of the load cell, this makes it easy to install, and it will be more stable to measure the torque force.

Mainly used for static, non-continuous rotational torque force measurement.





Application:



Mainly used for static, non-continuous rotational torque force measurement.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.25% F.S.

Hysteresis

0.25% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

410±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

Ø3×1500mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



























































Size and capacity:
