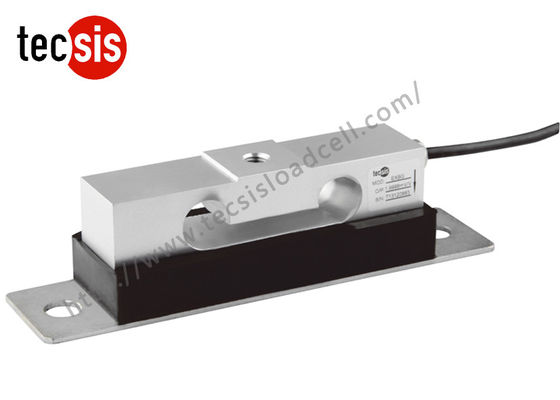

High Precision Aluminum Load Cell Single Point With Strain Gauge For Elevator

: Large Image : High Precision Aluminum Load Cell Single Point With Strain Gauge For Elevator

Product Details:

Place of Origin:	China
Brand Name:	tecsis
Model Number:	F9807

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	Standard: carton
Delivery Time:	Stock product:3~5 working days , No stock:10~35 days
Payment Terms:	L/C, T/T
Supply Ability:	20,000pcs per month

Contact Now

Detailed Product Description

Product Name:	F9807	Type:	Single Point Load Cell
Material:	Aluminum Alloy	Customized:	Acceptable
Capacity:	800kg	OEM/ODM:	Acceptable
Protection Class:	IP67	Usage:	Weighing System
High Light:	high precision load cell , industrial load cell

High Precision Aluminum Load Cell Single Point With Strain Gauge For Elevator

Features :

Model:F9807
Capacity: 800kg
Simple structure, easy to install
High comprehensive precision, high stability
Made of aluminum alloy
IP67 protection
Delicate structure

Description:

F9807 is a kind of Single Point Load Cell, It is made of aluminum alloy, Aluminum processing is different from alloy steel material manufacture processing, and its surface must be anodized. The protection level reaches to IP67, which provide excellent protection against moisture ingression.

F9807 load cell is available in the capacities 6kg to 20kg, its structure is very compact, very light, small size with profile, and easy to install, its precision is reach to 0.05%.

F9807 can be used for elevator overloading monitoring.

Application:

F9807 can be used for elevator overloading monitoring.

Technical parameters:

Specifications	Technique
Rated output	2.0±10%mV/V
Non-linearity	0.05% F.S.
Hysteresis	0.05% F.S.
Repeatability	0.05% F.S.
Creep (30min)	0.05% F.S.
Temp. effect on output	0.025% F.S. / 10ºC
Temp. effect on zero	0.025% F.S. / 10ºC
Input impedance	410±30Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/ 100VDC
Recommended excitation	10V
Maximum excitation	15V
Compensated temp. range	- 10~40ºC
Operation temp. range	- 20~60ºC
Safe overload	150% F.S.
Ultimate overload	250% F.S.
Cable size	Ø5×6000 mm
Protection class	IP67
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
