High Capacity Single Point Load Cell Force Transducer for Electronic Scale

China High Capacity Single Point Load Cell Force Transducer for Electronic Scale supplier
High Capacity Single Point Load Cell Force Transducer for Electronic Scale supplier High Capacity Single Point Load Cell Force Transducer for Electronic Scale supplier High Capacity Single Point Load Cell Force Transducer for Electronic Scale supplier High Capacity Single Point Load Cell Force Transducer for Electronic Scale supplier

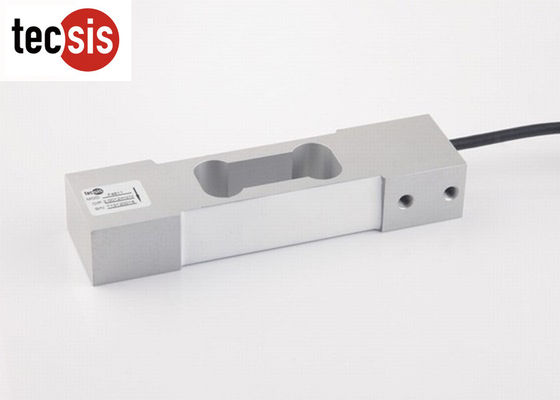

Large Image :  High Capacity Single Point Load Cell Force Transducer for Electronic Scale

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F4811

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F4811 Type: Single Point Load Cell
Material: Aluminum Alloy Customized: Acceptable
Capacity: 3kg~100kg OEM/ODM: Acceptable
Protection Class: IP65 Usage: Weighing System

High Capacity Single Point Load Cell Force Transducer for Electronic Scale





Features :

  • Model:F4811
  • Capacity: 3kg~100kg
  • Made of aluminum alloy
  • IP65 protection
  • Delicate structure
  • Simple structure, easy to install
  • Small size with profile
  • High comprehensive precision, high stability
  • Single point load cell



Description:



F4811 is a kind of Single Point Load Cell, It is made of aluminum alloy, and its surface must be anodized. The protection level reaches to IP65, which provide excellent protection against moisture ingression.



F4811 load cell is available in the capacities 3kg to 100kg, its structure is very compact, very light, small size with profile, and easy to install, has the function of high stability, F4811 is designed for electronic scales and platform scales where only one load cell can be used and low profile is required. Recommended platform size is 250mm×300mm, the design is most suitable for mass production operations.



F4811can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Application:



F4811 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.02% F.S.

Hysteresis

0.02% F.S.

Repeatability

0.02% F.S.

Creep (30min)

0.02% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

410±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

5V

Maximum excitation

10V

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~60ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5×1500 mm

Platform size 250×300mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

































































Size and capacity:



High Capacity Single Point Load Cell Force Transducer for Electronic Scale



Load Direction:



High Capacity Single Point Load Cell Force Transducer for Electronic Scale





Schematic Wiring Diagram :



High Capacity Single Point Load Cell Force Transducer for Electronic Scale

Product Deatils:



High Capacity Single Point Load Cell Force Transducer for Electronic ScaleHigh Capacity Single Point Load Cell Force Transducer for Electronic ScaleHigh Capacity Single Point Load Cell Force Transducer for Electronic ScaleHigh Capacity Single Point Load Cell Force Transducer for Electronic Scale
