Detailed Product Description

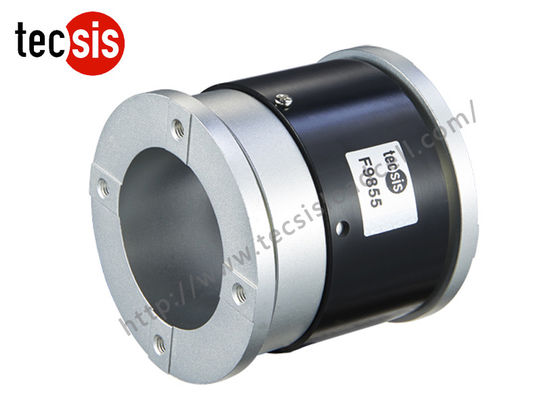

Product Name: F9855 Type: Column
Material: Aluminum Alloy Customized: Acceptable
Capacity: 20~50NM OEM/ODM: Acceptable
Protection Class: IP65 Usage: Torque Force Measurement

Aluminum Alloy Force Sensor Load Cell For Torque Force Measurement





Features :

  • Model:F9855
  • Capacity: 20~50NM
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of Aluminum alloy
  • Delicate structure
  • Static torqie sensor



Description:



Static torque sensor with metal foil strain gauge technology and compact structure.

Made of aluminum alloy, there are six holes on both sidez of the load cell, this makes it easy to install, and it will be more stable to measure the torque force.

Mainly used for static, non-continuous rotational torque force measurement.





Application:



Mainly used for static, non-continuous rotational torque force measurement.





Technical parameters:



Specifications

Technique

Rated output

1.5±5%mV/V

Non-linearity

0.05% F.S.

Hysteresis

0.05% F.S.

Repeatability

0.05% F.S.

Creep (30min)

0.5% F.S.

Temp. effect on output

≤0.05% F.S. / 10ºC

Temp. effect on zero

≤0.05% F.S. / 10ºC

Input impedance

750±30Ω

Output impedance

702±3Ω

Insulation

≥2000MΩ

Recommended excitation

5~10V

Maximum excitation

12V

Compensated temp. range

10~40ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø3×3000mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:

Aluminum Alloy Force Sensor Load Cell For Torque Force Measurement



Load Direction:



Aluminum Alloy Force Sensor Load Cell For Torque Force Measurement



Schematic Wiring Diagram :



Aluminum Alloy Force Sensor Load Cell For Torque Force Measurement



Product Details:

Aluminum Alloy Force Sensor Load Cell For Torque Force Measurement
