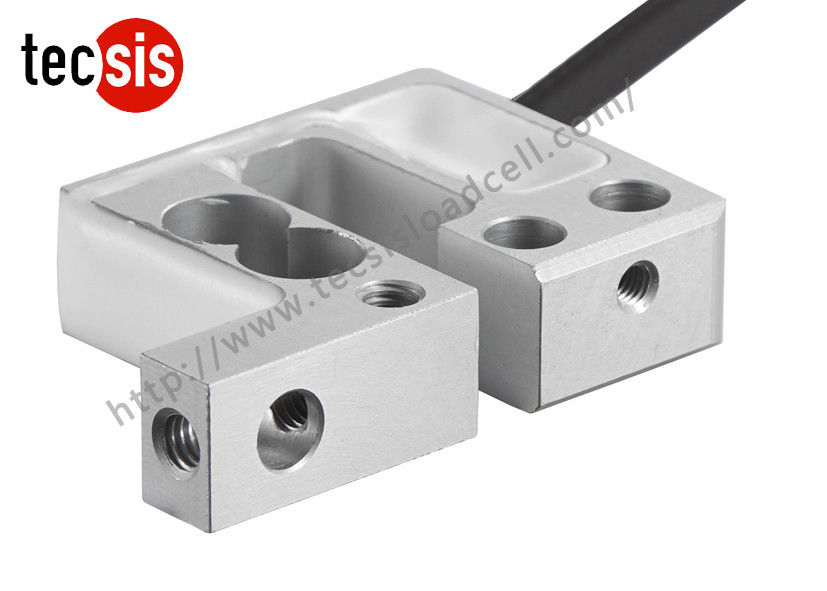

Large Image :  High Accuracy Force Transducer Load Cell Measure Tension Load Cells

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F2826

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F2826 Type: Single Point Load Cell
Material: Aluminum Alloy Customized: Acceptable
Capacity: 1kg~5kg OEM/ODM: Acceptable
Protection Class: IP65 Usage: Weighing System

High Accuracy Force Transducer Load Cell Measure Tension Load Cells





Features :

  • Model:F2826
  • Capacity: 1kg~5kg
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of aluminum alloy
  • IP65 protection
  • Delicate structure
  • Aluminum alloy load cell
  • Tension compression load cell



Description:



F2826 is a kind of Single Point Load Cell, It is made of aluminum alloy, and its surface must be anodized.



The protection level reaches to IP65.



F2826 load cell is available in the capacities 1kg to 5kg.



Its structure is very compact, very light, small size with profile, and easy to install.



Has the function of high stability, F2826 is designed for textile tension measuremnet.



F2826 mainly used in textile tension measurement. Applied to a variety of small spaces, widely used in industrial measurement and control, research and other applications





Application:



F2826 mainly used in textile tension measurement. Applied to a variety of small spaces, widely used in industrial measurement and control, research and other applications





Technical parameters:



Specifications

Technique

Rated output

1.0±5%mV/V

Zero balance

±2% F.S.

Non-linearity

0.05% F.S.

Hysteresis

0.05% F.S.

Repeatability

0.05% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

410±10Ω

Output impedance

350±5Ω

Insulation

≥2000MΩ/ 100VDC

Recommended excitation

5V

Maximum excitation

15V

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~60ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø3×300 mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);































































Size and capacity:



High Accuracy Force Transducer Load Cell Measure Tension Load Cells



Load Direction:



High Accuracy Force Transducer Load Cell Measure Tension Load Cells





Schematic Wiring Diagram :



High Accuracy Force Transducer Load Cell Measure Tension Load Cells

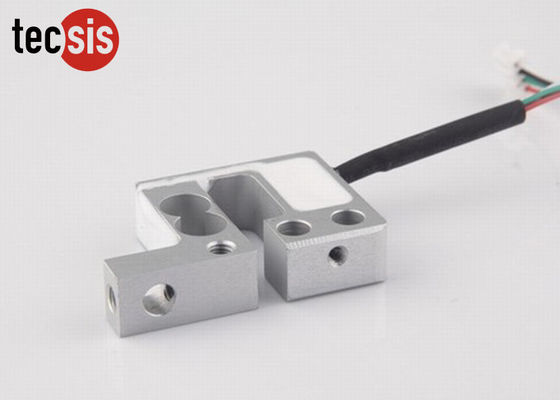

Product Details:



High Accuracy Force Transducer Load Cell Measure Tension Load Cells
