Detailed Product Description

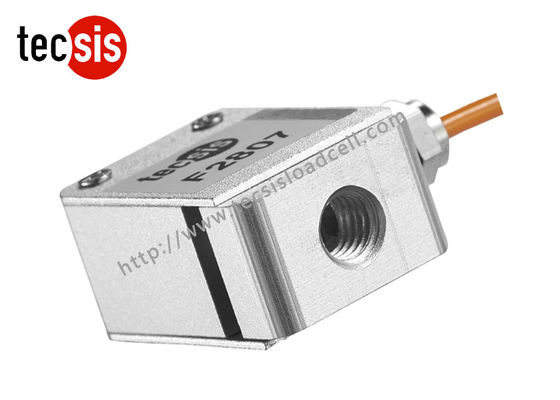

Product Name: F2807 S-Type Load Cell Structure: Compact
Material: Aluminum Alloy Or Alloy Steel Customized: Acceptable
Capacity: 1kg~50kg OEM/ODM: Acceptable
Theory: Resistance Sensor

Compression Type High Precision Load Cell For Electronic Weighing



Features :

  • Model:F2807
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Simple structure, easy to install
  • Small size, easy to use
  • Made of Aluminum alloy or Alloy steel
  • Capacity:1kg~50kg



Description:



Measure tension and compression force.



Compact structure, simple to install.



It comes complete 3.0m cable.



Because of its internal and external features, it can support compression and tension, and be mainly used for the tensile testing, for example, the testing of force gauge, this is a best choice in tensile testing machine,



It is made of aluminum alloy, but according to your application, you can choose alloy steel.



The protection class is IP65. It has many limited conditions on environment, so it is applied for dry and no corrosion environment.



The safe over is 120%, but according to your application, you can choose Alloy steel.



Mainly used for handheld push-pull gauge, key, switch elasticity test of computers, mobiles, crane scale and other force measurement use.





Applications:



F2807 S-type mainly used for handheld push-pull gauge, key, switch elasticity test of computers, mobiles, crane scale and other force measurement use.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.05% F.S.

Hysteresis

0.05% F.S.

Repeatability

0.05% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

410±10Ω

385±10Ω (Alloy steel)

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

5V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø3×3000 mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);































































Size and capacity:



Compression Type High Precision Load Cell For Electronic Weighing



Load direction:



Compression Type High Precision Load Cell For Electronic Weighing



Schematic Wiring Diagram :



Compression Type High Precision Load Cell For Electronic Weighing

Product details:

Compression Type High Precision Load Cell For Electronic Weighing

Application:

Compression Type High Precision Load Cell For Electronic Weighing
